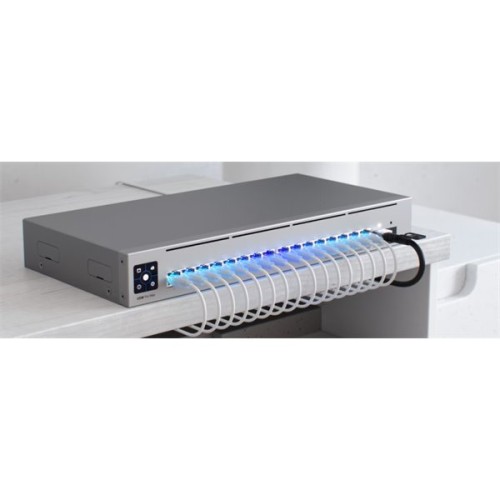

UBiQUiTi Switch 12x1000Mbps + 4x2500Mbps + 2x10Gbps SFP+, Menedzselhető, Asztali, Falra rögzíthető - USW-PRO-MAX-16 USW-PRO-MAX-16

Technical Specifications








Mechanical


Dimensions
325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7")


Weight
1.95 kg (4.3 lb)


Enclosure material
SGCC steel


Hardware


Management interface
Ethernet In-Band


Networking interface
(12) GbE RJ45 ports
(4) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports


Total non-blocking throughput
42 Gbps


Switching capacity
84 Gbps


Forwarding rate
62.496 Mpps


Power method
Type-C adapter


Power supply
5V, 25W


Max. power consumption
25W


LCM display
(1) 1.3" touchscreen


Button
Factory reset


Ambient operating temperature
-5 to 40° C (23 to 104° F)


Ambient operating humidity
10 to 90% noncondensing


Certifications
CE, FCC, IC


Switching Features


Layer 2 features
IGMP snooping
STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Voice VLAN
Port mirroring
LACP port aggregation
Multicast / broadcast rate limiting
MAC address blocking
Flow control
802.1X control
Jumbo frames
Proprietary loop protection
DHCP snooping / guarding
Egress rate limit
LLDP-MED
Port restricted by MAC
Device isolation with ACLs


Layer 3 features
DHCP for locally-managed networks
DHCP relay
Inter-VLAN routing between networks on same switch
Static routing between local networks
Network isolation with ACLs


Etherlighting™


Ethernet
Locating
Speed/link
Native VLAN/network


SFP+
Locating
Speed/link
Native VLAN/network
