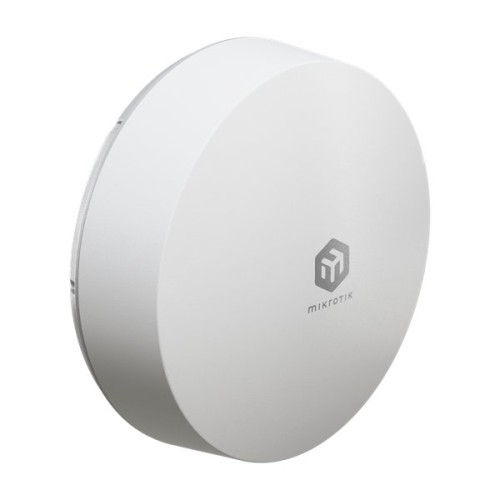

MIKROTIK Antenna 5G és eSIM támogatás, 1x1000Mbps, POE-in, LTE 5G Modem, kültéri - ATLGM&RG520F-EU ATLGM&RG520F-EU

Specifications




Details




Product code
ATLGM&RG520F-EU


Architecture
ARM 64bit


CPU
88F3720


CPU core count
2


CPU nominal frequency
800 MHz


RouterOS license
3


Size of RAM
512 MB


Storage size
32 MB


Storage type
FLASH


Tested ambient temperature
-40°C to 70°C










Powering




Details




Number of DC inputs
1 (PoE-IN)


Max power consumption
10 W


Max power consumption without attachments
10 W


Cooling type
Passive


PoE in
802.3af/at


PoE in input Voltage
12-56 V




Mobile




Details




3G Category
R8 (42.2Mbps Downlink, 5.76Mbps Uplink)


3G bands
1 (2100MHz) / 5 (850MHz) / 8 (900MHz)


LTE Category
20 (2.0 Gbps Downlink, 200 Mbps Uplink)


MIMO DL
4x4


LTE FDD bands
20 (800MHz) / 28 (700MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 1 (2100MHz) / 32 (1500 MHz)


LTE TDD bands
40 (2300MHz) / 38 (2600MHz) / 41 (2500MHz) / 42 (3500MHz)


5G NSA FDD bands
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)


5G NSA TDD bands
40 (2300 MHz) / 41 (2500 MHz) / 77 (3700 MHz) / 78 (3500 MHz) / 76 (1500 MHz) / 38 (2600 MHz) / 75 (1500 MHz)


5G SA FDD bands
1 (2100 MHz) / 3 (1800 MHz) / 5 (850 MHz) / 7 (2600 MHz) / 8 (900 MHz) / 20 (800 MHz) / 28 (700 MHz)


5G SA TDD bands
38 (2600 MHz) / 40 (2300 MHz) / 41 (2500 MHz) / 75 (1500 MHz) / 76 (1500 MHz) / 77 (3700 MHz) / 78 (3500 MHz)


TAC
86945405




Ethernet




Details




10/100/1000 Ethernet ports
1


Number of 1G Ethernet ports with Reverse PoE (PoE-in)
1




Peripherals




Details




Number of SIM slots
1 Modem (Micro SIM)


Number of M.2 slots
1




Other




Details




Mode button
Yes




Certification & Approvals




Details




Certification
CE, EAC, ROHS


IP
66
