MikroTik ACGPSA GPS antenna SMA csatlakozással ACGPSA
A kép csak illusztráció!

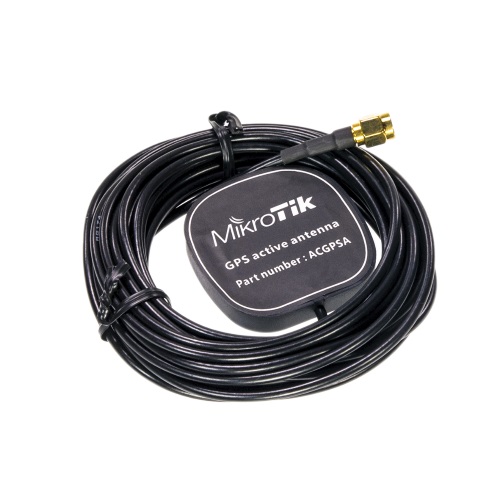

ACGPSA is standalone active GPS antenna, that works in 1575.4 MHz spectrum. Antenna size is 46.5 mm x 26.5 mm x 12.5 mm with IP67 rating and includes internal magnet and double sided tape, so it can easily be attached to various surfaces. It has a long 5m cable with an SMA connector, to be connected to LtAP mini via the ACSMAUFL pigtail (available for ordering separately).
Specifications
Product code: ACGPSA
Center frequency: 1575.42 Mhz
Gain: 26 dB
Water resistance: 100% waterproof (IP67)
Connector: SMA
Cable: 5 m RG-174/U (standard)
Standard mounting: Magnetic base
DC voltages: 3 V +-0.3 V
DC current: 8 mA max
Dimensions: 46.5 x 46.5 x 12.5 mm
Weight: 35 g (without cable), 120 g (with cable and connector)
Operating temperature: -40°C .. +85°C tested
Specifications
Product code: ACGPSA
Center frequency: 1575.42 Mhz
Gain: 26 dB
Water resistance: 100% waterproof (IP67)
Connector: SMA
Cable: 5 m RG-174/U (standard)
Standard mounting: Magnetic base
DC voltages: 3 V +-0.3 V
DC current: 8 mA max
Dimensions: 46.5 x 46.5 x 12.5 mm
Weight: 35 g (without cable), 120 g (with cable and connector)
Operating temperature: -40°C .. +85°C tested
| Raktárkészlet | 1-2 munkanap |
| Lagerbestand | 1-2 munkanap |
| Starea stocului | 1-2 munkanap |
| Stock status | 1-2 munkanap |
| Állapot | Új |
| Bedingung | Új |
| Condiție | Új |
| Condition | Új |
