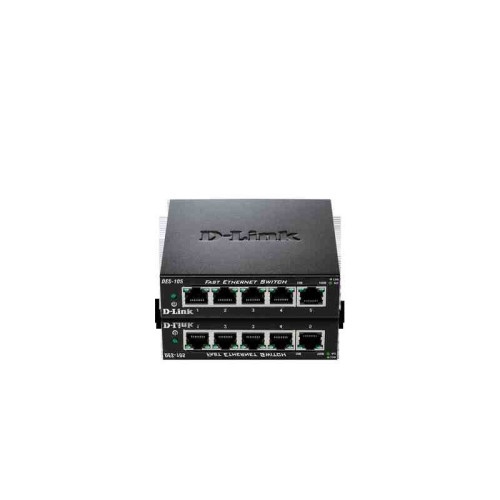

D-LINK DES-105 5 Port 10/100Mbit Fast Eternet Switch 5xport,Fémház,5x10/100

Technical Specifications:









D-Link DES-105/DES-108 Specifications







DES-105

DES-108





Switching Capacity

1.0 Gbps

1.6 Gbps





Standards





IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)

IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)

ANSI/IEEE 802.3 NWay auto-negotiation

IEEE 802.3x Flow Control

IEEE 802.1p QoS

IEEE 802.3az Energy-Efficient Ethernet (EEE)









Protocol

CSMA/CD





Data Transfer Rates





Ethernet:



10 Mbps (half duplex)

20 Mbps (full duplex)





Fast Ethernet:



100 Mbps (half duplex)

200 Mbps (full duplex)













Network Cables





10BASE-T:



UTP CAT 3, 4, 5/5e (100 m max.)

EIA/TIA-586 100-ohm STP (100 m max.)





100BASE-TX:



UTP CAT 5/5e (100 m max.)

EIA/TIA-568 100-ohm STP (100 m max.)













Media Interface Exchange

Auto MDI/MDIX adjustment for all ports





LED Indicators





Per port: Link/Activity

Per device: Power









Transmission Method

Store-and-forward





MAC Address Table

2K

1K





MAC Address Learning

Automatic update





Packet Filtering/Forwarding Rates





Ethernet: 14,880 pps per port

Fast Ethernet: 148,800 pps per port









RAM Buffer





384 KBytes per device

768 KBytes per device









Jumbo Frames

2048 Bytes





QoS

4 Queues, strict mode





General Specifications





DC Input

External 5 V/0.55 A Level “V” Power Adapter





Power Consumption





Power On (Standby):



DC input: 0.15 watts

AC input: 0.25 watts





Maximum:



DC input: 0.85 watts

AC input: 2.17 watts













Power On (Standby):



DC input: 0.25 watts

AC input: 0.3 watts





Maximum:



DC input: 1.3 watts

AC input: 2.4 watts













Heat Dissipation





Power On (Standby) AC input: 0.853 BTU/h

Maximum DC input: 2.9002 BTU/h









Power On (Standby) AC input: 1.0236 BTU/h

Maximum DC input: 4.4356 BTU/h









MTBF

1,398,635 hours

863,878 hours





Operating Temperature

32 to 104 °F (0 to 40 °C)





Storage Temperature

14 to 158 °F (-10 to 70 °C)





Operating Humidity

10% to 90% RH non-condensing





Storage Humidity

5% to 90% RH non-condensing





Dimensions

3.9 x 3.8 x 1.1 inches (100 x 98 x 28 mm)

6.3 x 4 x 1.1 inches (162 x 102 x 28 mm)





Weight

0.57 lbs (256 grams)

0.90 lbs (412 grams)





Certifications





FCC Class B

ICES-003 Class B

CE Class B

C-Tick Class B

VCCI Class B

cUL

CB
