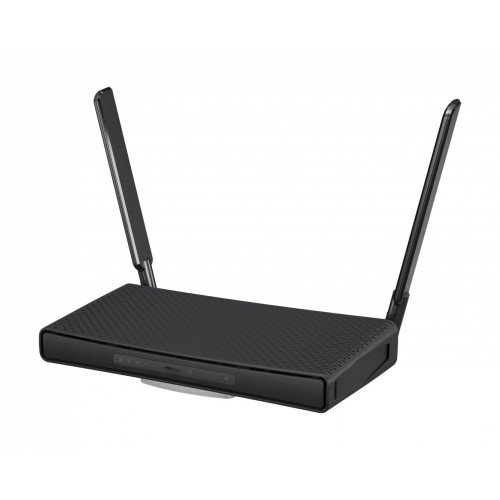

Mikrotik hAP ax3 with RouterOS L6 License. international version (EU) C53UiG+5HPaxD2HPaxD

Garancia: 2 Év

Specifications









Details









Product code

C53UiG+5HPaxD2HPaxD





Architecture

ARM 64bit





CPU

IPQ-6010





CPU core count

4





CPU nominal frequency

auto (864 - 1800) MHz





RouterOS license

6





Operating System

RouterOS v7





Size of RAM

1 GB





Storage size

128 MB





Storage type

NAND





MTBF

Approximately 200'000 hours at 25C





Tested ambient temperature

-40°C to 70°C

















Wireless capabilities









Details









Wireless 2.4 GHz Max data rate

574 Mbit/s





Wireless 2.4 GHz number of chains

2





Wireless 2.4 GHz standards

802.11b/g/n/ax





Antenna gain dBi for 2.4 GHz

3.3





Wireless 2.4 GHz chip model

QCN-5022





Wireless 2.4 GHz generation

Wi-Fi 6





Wireless 5 GHz Max data rate

1200 Mbit/s





Wireless 5 GHz number of chains

2





Wireless 5 GHz standards

802.11a/n/ac/ax





Antenna gain dBi for 5 GHz

5.5





Wireless 5 GHz chip model

QCN-5052





Wireless 5 GHz generation

Wi-Fi 6





WiFi speed

AX1800









Ethernet









Details









10/100/1000 Ethernet ports

4





Number of 1G Ethernet ports with PoE-out

1





Number of 2.5G Ethernet ports

1









Peripherals









Details









Number of USB ports

1





USB Power Reset

Yes





USB slot type

USB 3.0 type A





Max USB current (A)

1









Powering









Details









Number of DC inputs

2 (DC jack, PoE-IN)





DC jack input Voltage

12-28 V





Max power consumption

38 W





Max power consumption without attachments

15 W





Cooling type

Passive





PoE in

Passive PoE





PoE in input Voltage

18-28 V









PoE-out









Details









PoE-out ports

Ether 1





PoE out

Passive PoE





Max out per port output (input 18-30 V)

0.625 A





Max total out (A)

0.625 A





Total output current

0.625





Total output power

15









Certification & Approvals









Details









Certification

CE, FCC, IC, EAC, ROHS









Other









Details









Mode button

Yes









Wireless specifications









2.4 GHz

Transmit (dBm)

Receive Sensitivity









1MBit/s

27

-100





11MBit/s

27

-94





6MBit/s

29

-96





54MBit/s

27

-80





MCS0

29

-96





MCS7

26

-75





MCS9

24

-70





MCS11

22

-67















5 GHz

Transmit (dBm)

Receive Sensitivity









6MBit/s

28

-96





54MBit/s

26

-80





MCS0

28

-96





MCS7

25

-75





MCS9

23

-70





MCS11

20

-67









Included parts







24V 1.5A power adapter



Fastening set



HGO indoor antenna kit



hAP case base
