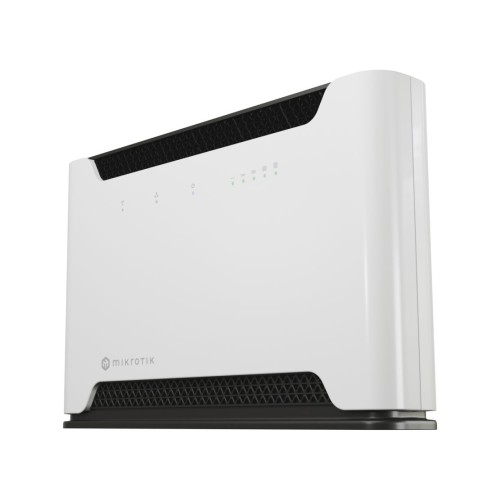

Mikrotik Chateau LTE12 (2025) Dual-Band Wireless/LTE Router D53G-5HACD2HND-TC&EG120K-EA

Garancia: 24 Hónap Megj.: Chateau LTE12 AC (2025), otthoni/kisirodai access point Cat12 LTE kártyával



Specifications







Details





Product code

D53G-5HacD2HnD-TC&EG120K-EA



Architecture

ARM 32bit



CPU

IPQ-4019



CPU core count

4



CPU nominal frequency

448-896 (auto) MHz



Switch chip model

IPQ-4019



RouterOS license

4



Operating System

RouterOS v7



Size of RAM

256 MB



Storage size

32 MB



Storage type

FLASH



MTBF

Approximately 200'000 hours at 25C



Tested ambient temperature

-20°C to 70°C

Powering







Details





Number of DC inputs

1 (DC jack)



DC jack input Voltage

12-28 V



Max power consumption

24 W



Max power consumption without attachments

18 W



Cooling type

Passive

Mobile







Details





3G Category

R8 (42.2Mbps Downlink, 5.76Mbps Uplink)



3G bands

3 (1800MHz) / 1 (2100MHz) / 5 (850MHz) / 8 (900MHz)



LTE Category

12 (600Mbps Downlink, 150Mbps Uplink)



MIMO DL

4x4



MIMO UL

1x1



LTE FDD bands

1 (2100MHz) / 3 (1800MHz) / 5 (850MHz) / 7 (2600MHz) / 8 (900 MHz) / 20 (800MHz) / 28 (700MHz) / 32 (1500 MHz)



LTE TDD bands

40 (2300MHz) / 41 (2500MHz) / 38 (2600MHz)



TAC

86056104

Wireless specifications







Details





Wireless 2.4 GHz Max data rate

300 Mbit/s



Wireless 2.4 GHz number of chains

2



Wireless 2.4 GHz standards

802.11b/g/n



Antenna gain dBi for 2.4 GHz

2



Wireless 2.4 GHz chip model

IPQ-4019



Wireless 2.4 GHz generation

Wi-Fi 4



Wireless 5 GHz Max data rate

867 Mbit/s



Wireless 5 GHz number of chains

2



Wireless 5 GHz standards

802.11a/n/ac



Antenna gain dBi for 5 GHz

4



Wireless 5 GHz chip model

IPQ-4019



Wireless 5 GHz generation

Wi-Fi 5

Ethernet







Details





10/100/1000 Ethernet ports

5

Peripherals







Details





Number of SIM slots

1 Modem (Micro SIM)



Number of USB ports

1



USB Power Reset

Yes



USB slot type

USB type A



Max USB current (A)

1



Number of M.2 slots

1

Other







Details





Mode button

Yes

Certification & Approvals







Details





Certification

CE, EAC, ROHS



IP

20

Wireless specifications







2.4 GHz

Transmit (dBm)

Receive Sensitivity





1MBit/s

25

-100



11MBit/s

25

-94



6MBit/s

26

-95



54MBit/s

23

-78



MCS0

26

-96



MCS7

22

-73







5 GHz

Transmit (dBm)

Receive Sensitivity





6MBit/s

26

-96



54MBit/s

22

-80



MCS0

26

-96



MCS7

21

-75



MCS9

19

-70

Included parts



24V 1.2A power adapter

UTP Flat Cable (1.5m)
