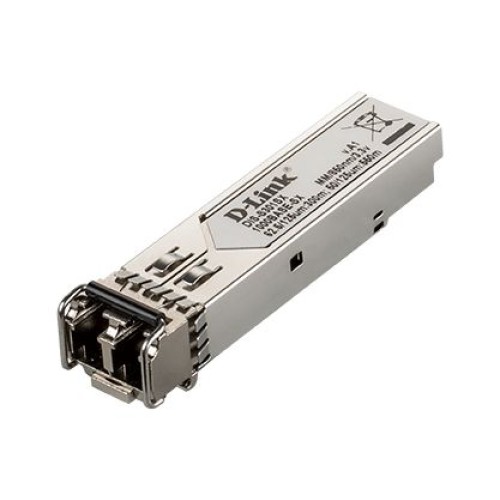

D-Link Ipari SFP modul 1-port Mini-GBIC SFP to 1000BaseSX Transceiver DIS-S301SX

Features





Hot Pluggable

MSA Compliant

RoHS Compliant





Standard



Compliant Standard





IEEE802.3z

1000BASE-SX





Transceiver Type





SFP





Fiber Channel FC-PI standard





100-M6-SN-I/100-M5-SN-I





Fiber Media support





Multi-Mode





Distance





62.5/125um: 300m

50/125um: 550m





Speed





1.25Gbps





Interface



Connector





Duplex LC Connector





Single/bi Direction





Single-direction





Wavelength





850nm





Output Optical Power (TX Optical Power)





MAX.: -3dBm

MIN.: -8 dBm





Input Optical Power (RX Optical Power)





MAX.: - 3 dBm

MIN.: - 22 dBm





Sensitivity





 -22dBm





Cable Type





Multi-mode 50/125um or 62.5/125um fibre





Operating



Power





 3.3V





Max Input Current





300mA





Power Budget (MIN Power Budget)





14d B





MAX Power Budget





19d B





Heat Generated





1.782kJ/h





MTBF (hours)





224,167 hours





Physical & Environment



Operation Temperature





-40~85?





Storage Temperature





-40~85?





Humidity (Operating)





5%~95%





Humidity (Storage)





5%~95%





Dimension ( W x D x H )





13.7 x 55.4 x 8.5mm





Weight(g)





20g





Bail latch colour





Black





Emission (EMI) and Safety Certifications



EMI





CE, FCC, VCCI





Safety





LVD, EN60825-1, EN 60825-2
