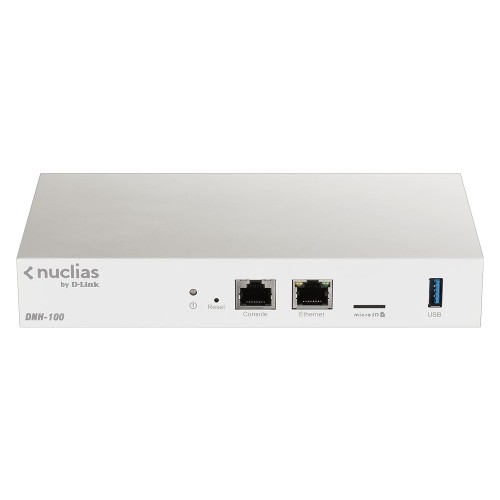

D-Link HUB - DNH-100 - Nuclius Connect 1GbitLAN, 1Console Port, 1USB3.0, 1MicroSD, több, mint 100 AP kezelés DNH-100

Specifications







10/100/1000Base-T
1


Optional 10G Uplink Module
N/A


Combo 10/100/1000Base-T/SFP
N/A


Console Port
RJ-45


USB Port (2.0)
1 (3.0)


Maximum Access Points per unit (default/ upgrade*)
100


Maximum Access Points per cluster (default/ upgrade*)
100


AP Auto Discovery
Yes


AP Monitoring
Yes


AP Authentication by External RADIUS
Yes


AP Authentication by Local Database
Yes


Auto Power Management
Yes


Auto Channel Management
Yes


Centralized Firmware Upgrade
Yes


Visualization Management
Yes


Remote AP Reboot
Yes


Connection mode between controller and AP
Bridge


Multi-tenant
Yes


NAT pass through (Controller can manage APs behind NAT)
Yes


Device Clustering
No


Device Clustering per Group
No


Configuration Push within Group
Yes


802.3af PoE
N/A


802.3at PoE
N/A


PoE Power budget
N/A


PoE Power budget with RPS
N/A


802.3at (Per Port)
N/A


Captive Portal
Yes


External User Database - RADIUS
Yes


External User Database - POP3
Yes


External User Database - LDAP
Yes


Local User Database
Yes


TACACS+
No


802.1X
Yes


Client Monitoring
Yes


Client Classicification
Yes


Ad-hoc Client Monitoring
No


Location Tracking
No


L2 Fast Roaming
No


L3 Fast Roaming
No


TKIP/AES Encryption
Yes


WPA/WPA2-Enterprise
Yes


WPA/WPA2-Personal
Yes


Rouge AP Detection & Mitigation
No


Rouge Client Detection & Mitigation
No


WLAN MAC Filtering
Yes


Hidden SSID
Yes


AP Station Isolation
Yes


AP Classification
Yes


WIDS
No


Wireless Multimedia (WMM)
Yes


802.1p Priority Queues
No


CoS-based QoS
No


Per-port Traffic Shaping
N/A


Per-flow Bandwidth Control
No


Per-queue Minimum Bandwidth Guarantee
No


802.1Q VLAN Tagging
Yes


802.1V Subnet-based VLAN
No


MAC-based VLAN
No


Port-based VLAN
N/A


GVRP
N/A


Static VLAN
Yes


Voice VLAN
N/A


VLAN Numbers
N/A


Dynamic VLAN
Yes


Double VLAN (Q-in-Q)
N/A


Switching Capacity
N/A


Max. Packet Forwarding Rate
N/A


MAC Address Table Size
N/A


Packet Buffer Size
N/A


Telnet Client
No


Telnet Server
Yes


TFTP Server
No


TFTP Client
No


SNMP (v1,v2c,v3)
No


SNTP
No


NTP
Yes


sFlow
No


Multiple Configuration Files
Yes


Dual Images
Yes


RMONv1
No


DHCP / BootP Client
No


DHCP Server
No


DHCP Relay
No


SYSLOG
Yes


SSH
Yes


HTTP
No


HTTPS
Yes


Command Line Interface (CLI)
Yes


802.1D Spanning Tree (STP)
N/A


802.1w Rapid Spanning Tree (RSTP)
N/A


802.1s Multiple Spanning Tree (MSTP)
N/A


IGMP Snooping
N/A


LLDP-MED
N/A


Many-to-One Mirroring
N/A


One-to-One Mirroring
N/A


MLD Snooping
N/A


Maximum Jumbo Frame (KB)
N/A


IPv6 Static Route
N/A


IPv4 Static Route
N/A


Routing Table Size
N/A


ARP Proxy
N/A


OSPF
N/A


RIP v1/ v2
N/A


LAN MAC Filtering
N/A


Broadcast Storm Control
N/A


DHCP Filtering
N/A


DHCP Snooping
N/A


Dynamic ARP Inspection ( DAI )
N/A


802.3ad Link Aggregation
N/A


Link Aggregation Group Per Device
N/A


Max Port Per Link Aggregation Group
N/A


VRRP
N/A


WAN Fail-over**
No


Firewall Policy
No


Numbers of Firewall Policy
N/A


Policy-based route
No


NAT, PAT
No


Outbound Load Balancing
No


Dynamic DNS
No


IPSec VPN Tunnel
No


PPTP / L2TP VPN Tunnel
No


IPSec Nat Traversal
No


VPN Tunnel Keep Alive
No


Dead Peer Detection
No


Hub and Spoke
No


SSL VPN Tunnel
No


Encryption Methods (DES/3DES/AES/Twofish/Blowfish/CAST-128/Null)
No


IP Encapsulating Security Payload (ESP)
No


IP Authentication Header(AH)
No


SSL Encryption Methods (DES/3DES/AES)
No


SSL Message Integrity (MD5/SHA1)
No


Static Web Content Filtering - Key word / URL
No


Dynamic Web Content Filtering ( Category)
No


Rackmount
19 inch


Dimension
190 x 100 x 31 mm


Weight
529 g


Operation Temperature
0 ~ 40 °C


Storage Temperature
- 20 ~ 70 °C


Operation Humidity
10% ~ 90% RH


Storage Humidity
5% ~ 95% RH


Power Supply
AC:100 ~ 240 V, 50/60 Hz


Power Consumption
6.5 W


Redundant Power Supply Support
No


Redundant Power Supply Module
No


Heat Dispassion
N/A


Acoustic
0 dB (fanless)


MTBF
260,000 hrs


FCC
Class B


CE
Yes


C-Tick
Yes


VCCI
Yes


BSMI
Yes


ICES-003
N/A


EN 60601-1-2
No


Safety Certifications (cUL)
Yes


Safety Certifications (CB)
Yes


Safety Certifications (LVD (En60950-1) )
Yes


AP License Upgrade
N/A


Advanced Feature Lincense Upgrade
N/A




DNH-100 KSH szám: 8517620000
