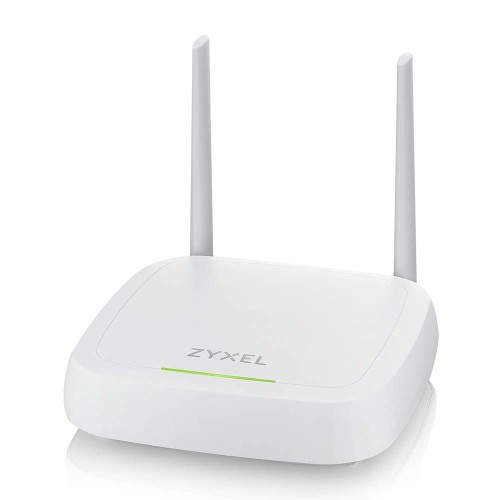

ZyXEL NWA30BE BE5100 4-Stream WiFi 7 Dual-Radio Desktop NebulaFlex Access Point White NWA30BE-EU0102F

Garancia: 5 Év

Wireless





Standard



IEEE802.11 be/ax/ac/n/g/b/a



MIMO



MU-MIMO



Wireless speed



2.4GHz: 688Mbps



5GHz: 4324Mbps



Frequency band



2.4GHz:



USA (FCC): 2.412 to 2.462 GHz



Europe (ETSI): 2.412 to 2.472 GHz







5GHz:



USA (FCC): 5.15 to 5.35 GHz; 5.470 to 5.850 GHz



European (ETSI): 5.15 to 5.35 GHz; 5.470 to 5.725 GHz



Bandwidth



20-, 40- ,80-, 160- and 240-MHz



Conducted typical transmit output power*1



US (2.4GHz/5GHz):



25/26dBm







EU (2.4GHz/5GHz):



16/26dBm



RF Design





Antenna type



2.4/5GHz undetachable external Antenna



Antenna gain



2.4GHz:



2dBi, 2x2:2SS







5GHz:



3dBi, 2x2:2SS



Minimum receive sensitivity



Min. Rx sensitivity up to -99 dBm



WLAN Features





Band steering



Yes



WDS/Smart Mesh*2



Yes



Wireless Bridge



Yes



Fast roaming



Pre-authentication, PMK caching and 802.11r/k/v



DCS



Yes



Load balancing



No



Advanced cellular coexistence



Yes



Security





Encryption



WPA/WPA2/WPA3 personal



Authentication



No



Access management



L2-isolation



MAC filtering



Rogue AP detection



Networking





IPv6



Yes



VLANs



Yes



WMM



Yes



U-APSD



Yes



Management





Operating mode



Cloud managed



Standalone



ZON Utility



Discovery of Zyxel switches, APs and gateways



Centralized and batch configurations:



IP configuration



IP renew



Device reboot



Device locating



Web GUI access



Firmware upgrade



Password configuration



Web UI/CLI



Yes



SNMP



No



Physical Specifications





Item



Dimensions (WxDxH)(mm/in.)

155 x 140 x 35 / 6.10 x 5.51 x 1.45



Weight (g/lb.)

307.3 / 0.68



Packing



Dimensions (WxDxH)(mm/in.)

175 x 240 x 60 / 6.89 x 9.45 x 2.36



Weight (g/lb.)

640.9 / 1.41



Included accessories



Power Adapter



Ethernet Cable



MTBF (hr)



631,165



Physical Interfaces





Ethernet port



1 x 1/2.5GbE LAN



Power



Power Adapter: AC 100 - 240V - 50/60 Hz 0.3A



Output: DC +12V 1.5A



PoE modes



IEEE 802.3af: Not supported



IEEE 802.3at: Unrestricted



IEEE 802.3bt: Unrestricted



Environmental Specifications





Operating



Temperature

0°C to 40°C/32°F to 104°F



Humidity

10% to 95% (non-condensing)



Storage



Temperature

-40°C to 70°C / -40°F to 158°F



Humidity

10% to 90% (non-condensing)



Certifications





Radio



FCC Part 15C



FCC Part 15E



FCC Part 2.1091



ETSI EN 300 328



EN 301 893



Draft EN 303 687



EN 50385



EN 50665



EN IEC 62311



LP0002



EMC



FCC Part 15B



EN 301 489-1



EN 301 489-17



EN55032



EN55035



EN61000-3-2/-3



EN60601-1-2



BSMI CNS15936



Safety



EN 62368-1



IEC 62368-1



BSMI CNS15598-1
