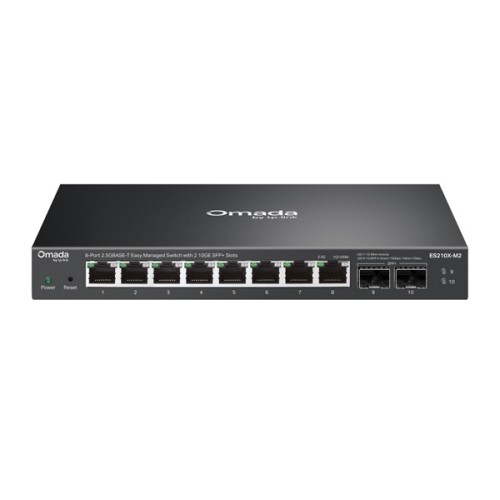

TP-LINK Switch 8x2.5Gbps + 2x10Gbps SFP+ Fémházas Easy Smart (Omada), ES210X-M2 ES210X-M2

HARDWARE FEATURES


Interface
• 8× 2.5 Gbps RJ45 Ports• 2× 10 Gbps SFP+ Slots• Auto-Negotiation/Auto MDI/MDIX

Fan Quantity
Fanless

Installation
• Desktop• Wall Mount

Physical Security Lock
?

Power Supply
AC/DC Adapter (Input: 100-240V AC; Output: 12V DC/1.5A)

Dimensions ( W x D x H )
8.2 × 5.0 × 1.0 in (209 × 126 × 26 mm)

Surge Protection
±6 kV



PERFORMANCE


Packet Buffer Memory
640 KB

Jumbo Frame
10 KB

Switching Capacity
80 Gbps

Packet Forwarding Rate
59.52 Mpps

MAC Address Table
16K



SOFTWARE FEATURES


Quality of Service
• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features
• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

Transmission Method
Store-And-Forward



Management Features


Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller

Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†



OTHERS


Certification
FCC, CE, RoHS

Package Content
• ES210X-M2• Power Adapter• Rubber Feet• Installation Guide

Environment
• Operating Temperature: -5?~40? (23?~104?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
