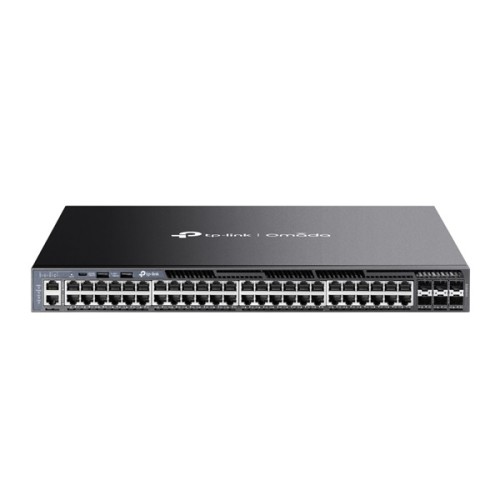

TP-LINK Switch 48x1000Mbps + 6x10Gbps SFP+ +2xUSB + 1xkonzol port + 1xUSB-C Layer3 Menedzselhető Rackes, SG6654X SG6654X

HARDWARE-FUNKTIONEN


Schnittstelle
• 48× 10/100/1000 Mbps RJ45 Ports• 6× 10G SFP+ Slots• 2× USB 2.0 Ports• 1× RJ45 Console Port• 1× USB Type-C Console Port• 1× RJ45 Management Port

Anzahl Lüfter
Four Internal Fixed Fans

Spannungsversorgung
Two Internal Fixed Power Supply Modules (100–240 VAC, 50/60 Hz)

Abmessungen (B*T*H)
17.3 × 15.0 × 1.7 in (440 × 380 × 44 mm)

Montage
Rackmountable

Maximale Leistungsaufnahme
39.8 W (220 V/50 Hz)

Maximale Wärmeabgabe
135.81 BTU/hr (220 V/50 Hz)



PERFORMANCE


Switchingkapazität
216 Gbps per Unit

Stacking
• Stacking Number: 4• Stacking Port: 10G SFP+ Slot (all uplink ports can be used as stacking ports)• Stack Bandwidth: Up to 120 Gbps (6 stack ports)

Paketweiterleitungsrate
160.7 Mpps

MAC-Adresstabelle
32 K

Paketpufferspeicher
3 MB

Jumbo-Frames
9 KB



SOFTWARE-FUNKTIONEN


Quality of Service
• Class of Service- 8 Queues of Priority- Port Priority- IEEE 802.1p Priority- DSCP Priority- Queue Min-Bandwidth- Schedule Mode (SP, WRR, SP+WRR)• Bandwidth Control- Rate Limit- Storm Control• Voice VLAN• User-Defined OUI• Smoother Performance• Action for Flows- QoS remark (802.1P Remark, DSCP Remark)

Layer3-Funktionen
• IP Interfaces:- IPv4: Max 256, IPv6: Max 256• Static Routing- Max 1,024, IPv6: Max 512• Host Route Table: Max 6,100 entries• RIP: Version v1/v2, Max 8,190• OSPF: Version v2/v3; v2: Max 8,190, v3: Max 4,097• VRRP: Version v2/v3, Max 64 groups• ECMP: 256 entries, max 32 ECMP Nexthops per Destination• Static ARP: 512 static entries• Dynamic ARP: 7,680 dynamic entries• Proxy ARP• DHCP Server:- Max 8K IP Pools- Max 1,000 Manual Binding Entries• DHCP Relay:- Relayed Interface- Relayed VLAN

Layer2- und Layer2+-Funktionen
• Link Aggregation• Spanning Tree Protocol• Port-based and VLAN-based Loopback Detection• 802.3x Flow Control• Supports 2,048 IGMP groups• ERPS• Mirroring• RSPAN• MAC Address Table• PIM-DM (IPv4)• Multicast- IGMP Snooping- MLD Snooping- L2 Multicast Table- Fast Leave- Multicast VLAN Registration (MVR)- Static Multicast IP- Multicast Filtering

Erweiterte Funktionen
• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Intelligent Network Monitoring†• Abnormal Event Warnings†• Unified Configuration†• Reboot Schedule†ISP Features:• 802.3ah Ethernet Link OAM• L2PT (Layer 2 Protocol Tunneling)• Device Link Detect Protocol (DLDP)• DDM• sFlow

VLAN
• Max 4K VLAN Group (802.1q VLAN)• 802.1Q Tagged VLAN• MAC VLAN Entries: 200• Multicast VLAN• Management VLAN• VLAN VPN (QinQ): Max 256 entries• GVRP• Protocol VLAN: Protocol Template 16, Protocol VLAN 12 entries• VLAN VPN• Voice VLAN• Private VLAN

Sicherheit
• Port Isolation• CPU-Defend• ARP Inspection (Dynamic ARP Inspection)• DoS Defend• IP-MAC-Port Binding-1,024 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard• IPv6-MAC-Port Binding-1,024 Entries- DHCPv6 Snooping- ND Detection- ND Snooping- IPv6 Source Guard• DHCP Filter• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unknown-unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- RADIUS authentication and accountability support• AAA (including TACACS+)• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv2• IP/Port/MAC-based access control



VERWALTUNG


Omada App
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Cloud Access
Yes. Requiring the use of the Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requiring the use of the Omada Cloud-Based Controller.

Management Features
• Web-based GUI• Command Line Interface (CLI) through console port, telnet• SNMPv1/v2c/v3- Trap/Inform- RMON (1, 2, 3, 9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP Auto Install• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• Password Recovery• SNTP• System Log• EEE



SONSTIGES


Verpackungsinhalt
• SG6654X Switch• 2× Power Cords• RJ45 Console Cable• Quick Installation Guide• Rackmount Kit• Rubber Feet

Systemanforderungen
Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.

Umgebung
• Operating Temperature:-5 °C to 50 °C (23 °F to 122 °F) @ 300 meters-5 °C to 45 °C (23 °F to 113 °F) @ 2,000 meters-5 °C to 40 °C (23 °F to 104 °F) @ 3,000 meters• Storage Temperature: -40 °C to 70 ? (-40 ? to 158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
