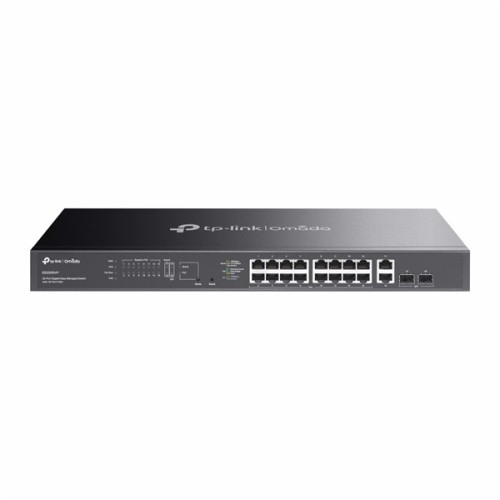

TP-LINK Switch 18x1000Mbps (16xPOE+) +2xGigabit SFP kombó Fémházas Easy Smart (Omada), ES220GMP ES220GMP

HARDWARE FEATURES


Interface
• 16× 10/100/1000 Mbps PoE+ RJ45 Ports (support 802.3at PoE+ and 802.3af PoE)• 2× 10/100/1000 Mbps RJ45 Port• 2× Gigabit SFP Slot

Fan Quantity
2

Installation
Rackmountable

Physical Security Lock
?

Power Supply
100–240 VAC, 50/60 Hz

PoE Ports (RJ45)
• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 16 ports• PoE Budget: 250W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance**

Dimensions ( W x D x H )
17.3 × 7.1 × 1.7 in.(440 × 180 × 44 mm)

Surge Protection
±6kV



PERFORMANCE


Switching Capacity
40 Gbps

Packet Forwarding Rate
29.76 Mpps

MAC Address Table
8K

Packet Buffer Memory
4 Mbit

Jumbo Frame
15 KB



SOFTWARE FEATURES


Quality of Service
• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?

L2 Features
• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP

L2 Multicast
• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave

VLAN
• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID

Transmission Method
Store-And-Forward



Management Features


Omada App
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Centralized Management
• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller

Cloud Access
Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.

Zero-Touch Provisioning
Yes. Requires the use of Omada Cloud-Based Controller

Management Features
• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†



OTHERS


Certification
FCC, CE, RoHS

Package Content
• ES220GMP• Power Adapter• Installation Guide• Rubber Feet

Environment
• Operating Temperature: -5?~50? (23?~122?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
