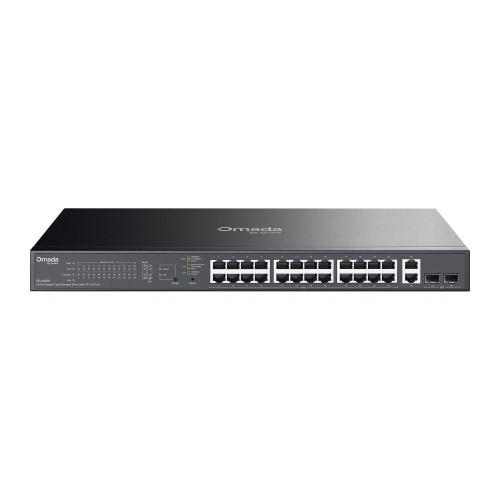

TP-Link ES228GP Omada 28-Port Gigabit Easy Managed Switch with 24-Port PoE+ ES228GP

HARDWARE FEATURES





Interface

• 26× 10/100/1000 Mbps RJ45 Ports• 2× Gigabit SFP Slots• Auto-Negotiation/Auto MDI/MDIX



Fan Quantity

2



Installation

Desktop/Rackmount Installation



Physical Security Lock

?



Power Supply

100-240V~ 50/60Hz 4.0A



PoE Ports (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 24 ports• PoE Budget: 250W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance**



Dimensions ( W x D x H )

17.3×7.1×1.7 in (440×180×44 mm)



Surge Protection

±6kV







PERFORMANCE





Switching Capacity

56 Gbps



Packet Forwarding Rate

41.67 Mpps



MAC Address Table

8K



Packet Buffer Memory

4 Mbit



Jumbo Frame

15 KB







SOFTWARE FEATURES





Quality of Service

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?



L2 Features

• Link Aggregation- Static Link Aggregation- Up to 4 aggregation groups and up to 8 ports per group• Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Trafffc Statistics• 802.1ab LLDP



L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave



VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID



Transmission Method

Store-And-Forward







Management Features





Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.



Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller



Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.



Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller



Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†







OTHERS





Certification

FCC, CE, RoHS



Package Content

• ES228GP• Power Cord• Mounting Brackets• Rubber Feet• Screws• Installation Guide



Environment

• Operating Temperature: -5?~45? (23?~113?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
