Mercusys MA37BE WiFi PCX BE6500 MA37BE

Wireless Standards





IEEE 802.11 a/n/ac/ax/be 6 GHz



IEEE 802.11 a/n/ac/ax/be 5 GHz



IEEE 802.11 b/g/n/ax/be 2.4 GHz





WiFi Speeds





2882 Mbps on 6 GHz

2882 Mbps on 5 GHz

688 Mbps on 2.4 GHz





Reception Sensitivity





6 GHz:

11ax HE160 MCS0:-86 dBm

11ax HE160 MCS11:-56 dBm



5 GHz:

11ax HE80 MCS0: -90 dBm

11ax HE80 MCS11: -59 dBm

11a 54Mbps: -77 dBm

11ac VHT80 MCS0: -92dBm

11ac VHT80 MCS9: -64dBm



2.4 GHz:

11ax HE40 MCS0: -91 dBm

11ax HE40 MCS11: -60 dBm

11g 54Mbps: -76 dBm

11n HT40 MCS7: -72dBm





Wireless Security





WPA-PSK/WPA2-PSK/WPA3-SAE









Wireless







Dimensions





228 × 120.8 × 21.5 mm (9.0 × 4.8 × 0.85 in )





Antenna Type





2× Fixed High-Performance Omni-Directional Antennas









Hardware







Package Contents

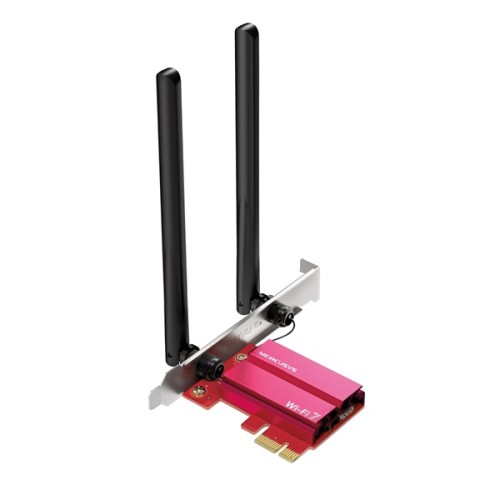

BE6500 Wi-Fi 7 Bluetooth 5.4 PCIe Adapter (MA37BE)

Bluetooth Header Cable

Quick Installation Guide

Resource CD





Environment





Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing





System Requirements





Compatible with Windows 11(64-bit)









Others
