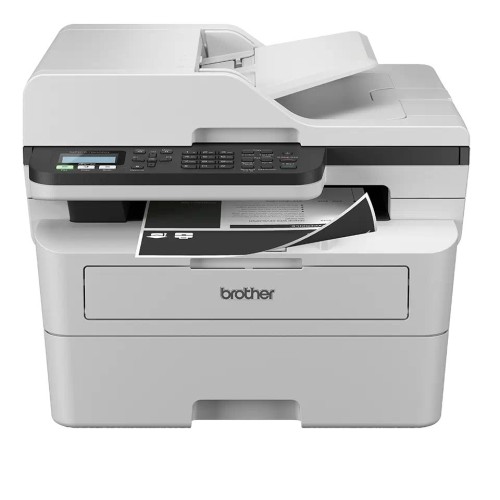

Brother MFC-B7800DN Wireless Lézernyomtató/Másoló/Scanner/Fax MFCB7800DNYJ1

  • Brother MFC-B7800DN Wireless Lézernyomtató/Másoló/Scanner/Fax MFCB7800DNYJ1

A kép csak illusztráció!

Kedvezményes ár ¹
Bruttó ár:
106 412 Ft
Fogyasztói ár ²
Bruttó ár:
108 540 Ft
Gyártó:
Cikkszám:
1051758
Gyári szám:
MFCB7800DNYJ1
Garancia:
24 hónap
Készlet információ:
Garancia: 3 Év

General Specifications

Printer Type

Laser

Print Method

Electrophotographic Laser Printer

Memory Capacity

Standard

256 MB

Liquid Crystal Display (LCD)

16 characters x 2 lines

Power Source

220 V to 240 V AC 50/60 Hz

Power Consumption

(Average)

Peak

Approximately 920 W

Printing *1

Approximately 470 W at 25°C

Printing

(Quiet Mode) *1

Approximately 270 W at 25°C

Copying *1

Approximately 490 W at 25°C

Copying

(Quiet Mode) *1

Approximately 280 W at 25°C

Ready *1

Approximately 43 W at 25°C

Sleep *1

Approximately 4.1 W

Deep Sleep *1

(DCP-B7600D)

Approximately 0.5 W

(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

Approximately 0.6 W

Power Off *1 *2 *3

Approximately 0.08 W

Dimensions

(Typical outline view)

(DCP-B7600D/DCP-B7620DW)

(MFC-B7800DN/MFC-B7810DW)

Unit: mm

(DCP-B7600D/DCP-B7620DW)

* : 410

** : 272

*** : 399

(MFC-B7800DN/MFC-B7810DW)

* : 410

** : 319

*** : 399

Weight (with supplies)

(DCP-B7600D/DCP-B7620DW)

10.5 kg

(MFC-B7800DN/MFC-B7810DW)

12.0 kg

Noise Level

Sound Pressure *4

Printing

LpAm = 49 dB (A)

Printing

(Quiet Mode)

LpAm = 44 dB (A)

Ready

LpAm = 30 dB(A)

Sound Power

Printing *4

LWAc = 6.63 B (A)

Printing

(Quiet Mode)

LWAc = 6.12 B (A)

Ready

LWAc = Inaudible

Temperature

Operating

From 10°C to 32.5°C

Storage

From 0°C to 40°C

Humidity

Operating

20% to 80% (without condensation)

Storage

35% to 85% (without condensation)

Automatic Document Feeder (ADF)

(MFC-B7800DN/MFC-B7810DW)

Up to 50 sheets

For best results we recommend:

Temperature: 20°C to 30°C

Humidity: 50% to 70%

Paper: 80 g/m2

*1

Measured when the machine is connected using the same network connection as the ENERGY STAR Ver. 3.1 test method.

*2

Measured according to IEC 62301 Edition 2.0.

*3

Power consumption varies slightly depending on the usage environment.

*4

Measured in accordance with the method described in ISO 7779.

Document Size Specification

Document Size

ADF Width *1

105 mm to 215.9 mm

ADF Length *1

147.3 mm to 355.6 mm

Scanner Glass Width

Maximum 215.9 mm

Scanner Glass Length

Maximum 300 mm

*1

ADF models only

Print Media Specifications

Paper Input

Paper Tray

(Standard)

Paper Type

Plain Paper, Thin Paper, Recycled Paper, Thick Paper

Paper Size



A4, Letter, B5 (JIS), B5 (ISO), A5, A5 (Long Edge), B6 (JIS), A6, Executive, 16K (195x270 mm), A4 Short (270mm Paper)



Paper Weight

60 to 163 g/m2 *1

Maximum Paper Capacity

Up to 250 sheets of 80 g/m2 Plain Paper

Manual Feed Slot

Paper Type



Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Bond, Label, Envelope, Env.Thin, Env.Thick



Paper Size

Width:

76.2 to 215.9 mm

Length:

127 to 355.6 mm

Envelope:

COM-10, DL, C5, Monarch

Paper Weight

60 to 230 g/m2

Maximum Paper Capacity

One sheet at a time

Paper Output *2

Face Down Output Tray



Up to 120 Sheets (face down delivery to the face down output paper tray) *3



Face Up Output Tray

One sheet (face up delivery to the face up output tray)

2-sided

Automatic 2-sided Printing

Paper Type

Plain Paper, Thin Paper, Recycled Paper

Paper Size

A4

Paper Weight

60 to 105 g/m2

*1

For paper of 105 g/m2 and above, open the back cover to use the face up output tray.

*2

For labels, we recommend removing the printed sheets from the output paper tray immediately after they exit the machine to avoid the possibility of smudging.

*3

Calculated with 80 g/m2 in a temperate, non humid environment. Actual output tray capacity may vary depending on environmental conditions.

Fax Specifications

NOTE

This feature is available for MFC models.

Compatibility

ITU-T Super Group 3

Coding System

MH / MR / MMR / JBIG

Modem Speed

33,600 bps (with Automatic Fallback)

2-sided Print Receiving

(MFC-B7800DN/MFC-B7810DW)

Yes

Scanning Width

Maximum 208 mm

Printing Width

Maximum 207.4 mm

Greyscale

8 bit / 256 levels

Resolution

Horizontal

203 dpi

Vertical

Standard: 98 dpi

Fine: 196 dpi

Super fine: 392 dpi

Photo: 196 dpi

Address Book

(MFC-B7800DN/MFC-B7810DW)

200 Locations

Shortcut

(MFC-B7800DN/MFC-B7810DW)

10 locations

Groups

Up to 20

Broadcasting

(MFC-B7800DN/MFC-B7810DW)

260 Locations

Automatic Redial

3 times at 5-minute intervals

Memory Transmission

(MFC-B7800DN/MFC-B7810DW)

Up to 400 pages  *1

Out of Paper Reception

(MFC-B7800DN/MFC-B7810DW)

Up to 400 pages  *1

*1

‘Pages’ refers to the ‘ITU-T TestChart Document No.1’ (a typical business letter, Standard resolution, JBIG code).

Copy Specification

Copy Width

Maximum 210 mm

Sort Copy

Yes

Stack Copy

Up to 99 pages

Resolution

Maximum 600 x 600 dpi

First Copy Out Time *1

Less than 10 seconds at 23°C

*1

From Ready Mode and standard tray.

Scanner Specifications

Colour / Black

Yes / Yes

TWAIN Compliant

Yes(Windows 10 / Windows 11)

WIA Compliant

Yes(Windows 10 / Windows 11)

AirPrint Compliant

(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

Yes

(macOS v11, v12, v13)

Colour Depth

30 bit colour Processing (Input)

24 bit colour Processing (Output)

Grey Scale

10 bit colour Processing (Input)

8 bit colour Processing (Output)

Resolution *2

Up to 19200 x 19200 dpi (interpolated)

Up to 1200 x 1200 dpi (from Scanner Glass)

Up to 600 x 600 dpi (from the ADF)  *1

Scanning Width

Maximum 210 mm

*1

ADF models only

*2

Maximum 1200 × 1200 dpi scanning with the WIA driver in Windows 10 and Windows 11 (resolution up to 19200 × 19200 dpi can be selected by using the scanner utility)

Printer Specifications

Automatic 2-sided Print

Yes

Emulation

PCL6, BR-Script3, PDF Version 1.7

Resolution

Up to 1200 x 1200 dpi

Print Speed *1 *2

1-sided Print *3

Up to 34 pages/minute (A4 size)

Up to 36 pages/minute (Letter size)

2-sided Print

Up to 16 pages/minute (Up to 8 sheets/minute) (A4 size)

Up to 17 pages/minute (Up to 8.5 sheets/minute) (Letter size)

First Print Time *4

Less than 8.5 seconds at 23°C

*1

The print speed may change depending on the type of document you print.

*2

The print speed may be slower when the machine is connected by wireless LAN.

*3

These print speeds are for 1-sided printing and measured in accordance with the ISO/IEC 24734 standard.

*4

From Ready mode and standard tray.

Interface Specifications

USB *1 *2

Hi-Speed USB 2.0

Use a USB 2.0 interface cable that is no more than 2 metres long.

LAN

(DCP-B7620DW/MFC-B7800DN/MFC-B7810DW)

10Base-T/100Base-TX *3

Wireless LAN

(DCP-B7620DW/MFC-B7810DW)

IEEE 802.11a/b/g/n (Infrastructure Mode)

IEEE 802.11a/g/n (Wi-Fi Direct®)

*1

Your machine has a USB 2.0 Hi-Speed interface. The machine can also be connected to a computer that has a USB 1.1 interface.

*2

Third party USB hub devices are not supported.

*3

Use a straight-through Category 5 (or greater) twisted-pair cable.

Supported Protocols and Security Features

Supported protocols and security features may differ depending the models.

Ethernet

10Base-T/100Base-TX

Wireless LAN (2.4GHz)

IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g/n (Wi-Fi Direct)

Wireless LAN (5GHz)

IEEE 802.11a/n (Infrastructure Mode), IEEE 802.11a/n (Wi-Fi Direct)

Protocols (IPv4)



ARP, RARP, BOOTP, DHCP, APIPA(Auto IP), WINS/NetBIOS name resolution, DNS Resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, POP3, SMTP Client, IPP/IPPS, FTP Client and Server,CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMP, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP



Protocols (IPv6)



NDP, RA, DNS resolver, mDNS, LLMNR responder, LPR/LPD, Custom Raw Port/Port9100, IPP/IPPS, POP3, SMTP Client, FTP Client and Server, CIFS Client, SNMPv1/v2c/v3, HTTP/HTTPS server, TFTP client and server, ICMPv6, Web Services (Print/Scan), Syslog, SNTP Client,IMAP4,LDAP



Network Security (Wired)



APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x (EAP-MD5, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.

Network Security (Wireless)



APOP*, SMTP-AUTH, SSL/TLS (SMTP, HTTP, IPP, POP3*, IMAP4*, FTP), SNMP v3, 802.1x ( EAP-FAST, PEAP, EAP-TLS, EAP-TTLS), OAuth(SMTP, POP3, IMAP4), Kerberos

*When Internet FAX is downloaded.

Wireless Network Security



WEP 64/128 bit, WPA-PSK (TKIP/AES), WPA2-PSK (TKIP/AES), WPA3-SAE (AES) (Wi-Fi Direct supports WPA2-PSK (AES) only)



Wireless Certification



Wi-Fi Certification Mark License (WPA3™ - Enterprise, Personal), Wi-Fi Protected Setup™ (WPS) Identifier Mark License, Wi-Fi CERTIFIED™ Wi-Fi Direct

Computer Requirements Specifications

Supported Operating Systems And Software Functions

For the latest supported OS, go to your model's Supported OS page at support.brother.com/os.



Computer Platform & Operating System Version

PC Interface

Processor

Hard Disk Space to Install *1

USB *2

Wired LAN

Wireless LAN

For Drivers

For Applications

(including Drivers)

Windows 10 Home / 10 Pro / 10 Education / 10 Enterprise *4 *5

Printing

PC Fax *3

Scanning

32 bit (x86) or 64 bit (x64) processor

80 MB

1.8 GB

Windows 11 Home / 11 Pro / 11 Education / 11 Enterprise *4 *5

64 bit (x64) processor

Windows Server 2012

Printing

Scanning

Printing

64 bit (x64) processor

80 MB

80 MB

Windows Server 2012 R2

Windows Server 2016

Windows Server 2019

Windows Server 2022

macOS v11 *6

Printing

PC-Fax (Send) *3

Scanning

64 bit processor

N/A

500 MB

macOS v12 *6

macOS v13 *6

Chrome OS

Printing

Scanning

N/A

N/A

N/A

*1

An Internet connection is required to install the software if the installation disc is not supplied.

*2

Third party USB ports are not supported.

*3

PC-Fax supports black and white only.

*4

For WIA, 1200x1200 resolution. Brother Scanner Utility enables to enhance up to 19200 x 19200 dpi.

*5

PaperPort™ 14SE supports Windows 10 and Windows 11.

*6

macOS DisclaimerAirPrint capable: Printing, scanning, or PC faxing(Send) via macOS requires the use of AirPrint. Mac drivers are not provided for this machine.
