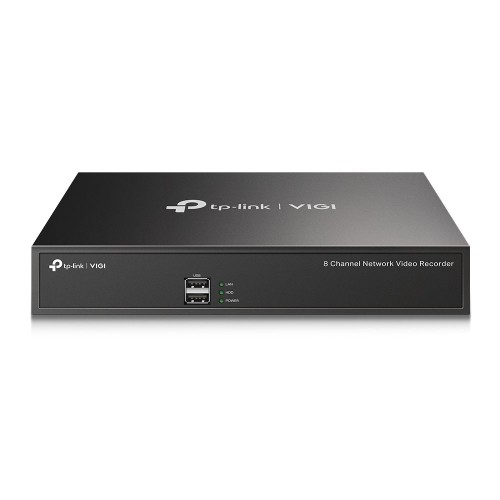

TP-LINK Video recorder, VIGI NVR1008H VIGI NVR1008H

Protocol
TCP/IP, DHCP, DNS, NTP, UPnP


Incoming Bandwith
80 Mbps


Outgoing Bandwidth
60 Mbps







GENERAL




Operating Temperature
-10–55 °C


Chassis
1U Chassis


Dimensions( H X W X D )
246.2 mm*148.2 mm*42.6 mm


Weight
578.5 g


External Power Supply
12V DC, no more than 18 W


Power Consumption
4.25 W (without disk)
13.10 W (with disk)







VIDEO/IMAGE




Video Input
8-Channel IP Video Input, up to 5 MP Resolution


Video Output
Recording Resolution: 5 MP/ 4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI/VGA Output Resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1680 × 1050/60Hz, 1440 × 900/60Hz







DECODING




Decoding Format
H.265+/H.265/ H.264+/H.264


Live View/Playback Resolution
5 MP/ 4 MP/3 MP/1080p/UXGA/
720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF


Synchronous Playback
4 Channel†


Capability
1-ch @ 5MP, 2-ch @ 2MP, 4-ch @ 720p







HARD DISK




SATA
1 SATA Interface


Capacity
Up to 10 TB







INTERFACES




Network Interface
1 RJ-45 10/100 Mbps Self-Adaptive Ethernet Interface


USB Interface
2 × USB 2.0



VIGI NVR1008H KSH szám: 8525801990
