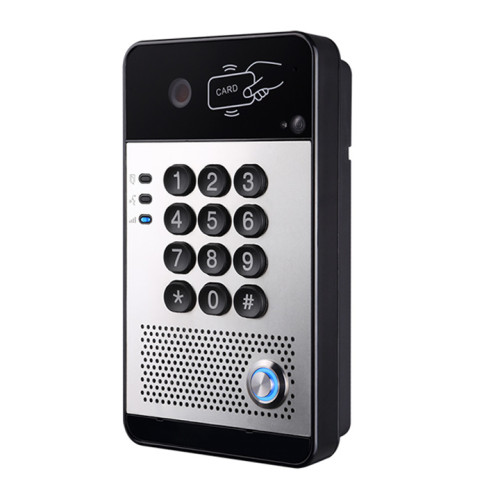

Fanvil I30 Kaputelefon

  • Fanvil I30 Kaputelefon

A kép csak illusztráció!

Kedvezményes ár ¹
Bruttó ár:
140 110 Ft
Fogyasztói ár ²
Bruttó ár:
142 912 Ft
Gyártó:
Cikkszám:
759272
Garancia:
24 hónap
Készlet információ:

KEY FEATURES
  • Small and exquisite, eiasy to install
  • Graphical Status lights
  • Comfortable keyboard feel, soft backlight
  • All-in-One (Access Control, Intercom and Broadcasting)
  • Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
  • Access by call, code , indoor switch and RFID card
  • Build-in 3W speaker and AEC, support high quality hand-free communication
  • System online maintenance and management
ACCESS CONTROL FUNCTION
  • Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
  • Full-duplex handsfree (HF)
  • Default Auto Answer
  • Open the door operation: DTMF, password, RFID card, switch
  • Support 200,000 door open records
  • Support 2000 remote access list
  • Support2000 RFID cards
  • Support electric lock internal or external power supply options
  • Support customized DSS keys
  • Network Time Synchronization
  • Action URL / Active URI remote control
AUDIO
  • Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
  • Broadband speech codec: G.722
  • Full Duplex Echo Cancellation (AEC)
  • DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info
VIDEO
  • Sensor: 1/4 “color CMOS
  • Pixels: 1 million
  • Video codec: H.264
  • Resolution: The main stream1280 *720 Sub-stream 640*360, 352*288, 32*240
  • Viewing angle: 110 ° (H), 95 ° (V)
  • Minimum illumination: 1Lux, temporarily does not support infrared lighting
NETWORKING/PROTOCOLS
  • Support PoE (802.3af)
  • Primary and secondary DNS servers are supported
  • Support VLAN
  • Support SNTP client
  • Support VPN L2TP / openVPN
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos: 802.1p / q, DSCP
  • Support MD5 authentication
  • Support Web Filter
  • DHCP / static / PPPoE
  • Support STUN
PHYSICAL SPECIFICATIONS
  • 1 DSS button (speed dial button)
  • 4 indicator lights (including hot-key backlight)
  • Numeric keypad
  • 1 indoor switch
  • 1 relay: MAX DC30V / 1A, AC125V / 0.5A
  • Active switching output: 12V / 700mA DC
  • RFID reader: ID (EM4100) standard type IC(MIFARE ONE) custom type
  • RFID card number output: positive sequence output 8H10D
  • Microphone: -38dB
  • Speaker: 4Ω / 3W
  • WAN port: RJ-45, 10 / 100M adaptive
  • Power supply: 12V ± 15% / 1A DC or POE
  • PoE: 802.3af (Class 3 – 6.49 to 12.95W)
  • Standby power: 2.76W, 12V / 230mA
  • Network cable: CAT5 or better
  • Shell material: metal surface, ABS bottom shell
  • Installation: wall-mounted installation
  • Operating temperature: -20 ~ 60 ℃
  • Storage temperature: -40 ~ 70 ℃
  • Relative humidity: 10 ~ 90%
  • Protection class: IP65
  • Equipment size: 160x93x35mm
  • Packing size: 178x104x55mm
  • Equipment weight: 330g
  • Package weight: 450g
 ,

 ,KÉRJÜK RENDELJEN MELLÉ ADAPTERT IS, AMENNYIBEN SZÜKSÉGE VAN RÁ!

Raktárkészlet 2-3 munkanap
Lagerbestand 2-3 munkanap
Starea stocului 2-3 munkanap
Stock status 2-3 munkanap
Állapot Új
Bedingung Új
Condiție Új
Condition Új
