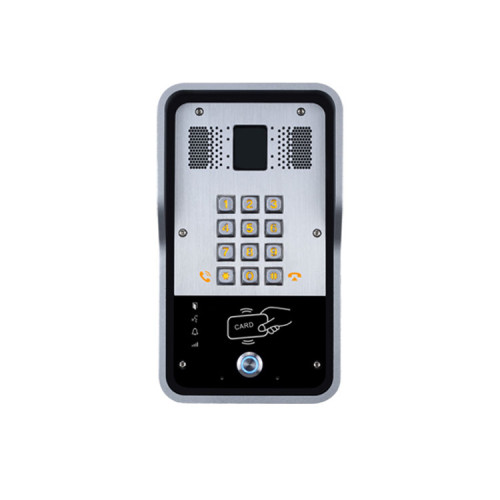

Fanvil I23S Kaputelefon

  • Fanvil I23S Kaputelefon

A kép csak illusztráció!

Kedvezményes ár ¹
Bruttó ár:
134 037 Ft
Fogyasztói ár ²
Bruttó ár:
136 718 Ft
Gyártó:
Cikkszám:
759273
Garancia:
24 hónap
Készlet információ:

The ,Fanvil i23S IP Audio Door Phone ,is a video intercom that is based on Fanvil's knowledge and experience of IP phone development. The i18S uses standard IP/RTP/RTSP protocol for voice transmission and enjoy the advantages of full range of compatibility. The Fanvil i18S IP Video Intercom has a variety of enterprise-level features and is compatible with many major platforms, such as 3CX, Asterisk and Elastix.

Fanvil i23S IP Audio Door Phone Key Features

  • Compatible with standard SIP(RFC3261) protocol and main IPPBX/IMS platform
  • Enclosure designed on International Protection (IP) markings to protect against intrusion - accidental or intentional - waterproofed to IP65 and anti-collision up to IK10
  • Adapts to operate under various environmental conditions and temperatures (supports temperatures ranging from -40 to +70 Celsius.)
  • All-in-One(Access Control, Intercom and Broadcasting)
  • Status indication icon
  • Access Control(by call, by code, IC/RFID, Indoor Switch)
  • Built-in 3W speaker and AEC, support high quality hands-free communication.
  • System online maintenance and management

The robust mechanical construction of the i23S IP Video Intercom offers protective coverage rating against dust and water (IP65). The i23S is an economical device with triple function(All in 1)- Access Control by call, code and RFID card.

Fanvil i23S IP Audio Door Phone Technical Specification

Access control function

  • Two SIP lines, support SIP 2.0 (RFC3261) and related RFC
  • POE Enabled
  • Full-duplex handsfree (HF)
  • Default Auto Answer
  • Open the door operation: DTMF, password, RFID card, switch
  • Support 200,000 door open records
  • Support 1000 remote access list
  • Support 1000 RFID cards
  • Support electric lock internal or external power supply options
  • Support customized DSS keys
  • Network Time Synchronisation
  • Action URL / Active URI remote control
  • Support SRTP
  • Support HTTP / HTTPS web pages
  • Support Qos: 802.1p / q, DSCP
  • Support MD5 authentication
  • Support Web Filter
  • DHCP / static / PPPoE
  • Support STUN

Audio

  • Narrowband speech codec: G.711a / u, G.723.1, G.726-32K, G.729AB
  • Broadband speech codec: G.722
  • Full Duplex Echo Cancellation (AEC) – 96ms tail-length
  • DTMF: In-band, out-of-band DTMF (RFC2833) / SIP Info

Deployment and Maintenance

  • Auto-Provisioning via: FTP / TFTP / HTTP / HTTPS / DHCP / TR069 / SIP PNP
  • Web Management Portal
  • Web-based Packet Dump
  • Configuration Backup / Restore
  • Entry Log Export
  • Access Table Export / Import
  • Firmware Upgrade
  • Syslog(include door access logs)

Networking/ Protocols

  • Support PoE (802. 3 af)
  • Primary and secondary DNS servers supported
  • Support RTSP
  • Support SNTP client
  • VLAN
  • Support VPN L2TP/ openVPN

Physical Specifiations

  • 1 DSS button (speed dial button)
  • 5 indicator lights (including hot-key backlight)
  • Numeric keypad
  • 1 indoor switch
  • 1 relay: MAX DC30V / 1A, AC125V / 0.5A
  • Active switching output: 12V / 650mA DC
  • RFID reader: ID (EM4100) standard type,IC(MIFARE ONE)
  • Microphone: -38dB
  • Speaker: 4Ω / 3W
  • WAN port: RJ-45, 10 / 100M adaptive
  • Power supply: 12V ± 15% / 1A DC or POE
  • PoE: 802.3af (Class 3 - 6.49 to 12.95W)
  • Network cable: CAT5 or better
  • Shell Material: Aluminum Cover and Cast-Aluminum back case
  • Installation method: Wall-mounting or Flush-mounting
  • Storage Temperature:-40~70℃
  • Working Humidity: 10~90%
  • Protection level: IP65 and IK10
  • Overall Dimension: 223 x 130 x 74mm (W x H x L)
  • Gift Box Dimensions: 310 x 175 x 115mm
  • Outer CTN Dimensions: 370 x 370 x 330mm(6 PCS)
  • Package Weight:1800g

 ,KÉRJÜK RENDELJEN MELLÉ ADAPTERT IS, AMENNYIBEN SZÜKSÉGE VAN RÁ!

 ,

Raktárkészlet 2-3 munkanap
Lagerbestand 2-3 munkanap
Starea stocului 2-3 munkanap
Stock status 2-3 munkanap
Állapot Új
Bedingung Új
Condiție Új
Condition Új
