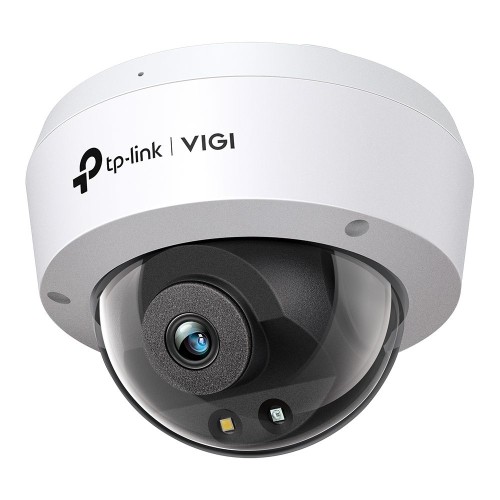

TP-Link VIGI C250 (2.8mm) 5MP Full-Color Dome Network Camera VIGI C250(2.8MM)
A kép csak illusztráció!
KAMERA
Képérzékelő
1/2.7” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Min. szükséges megvilágítás
0.005 Lux; 0 Lux with IR/white light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Day/Night/Auto/Schedule-Switch
LENS
Type
Fixed Focal Lens
Focal Length
2.8/4 mm
Aperture
2.8 mm: F1.6
4 mm: F1.6
FOV
2.8mm:
Horizontal FOV: 109°, Vertical FOV: 57°, Diagonal FOV: 128°
4mm:
Horizontal FOV: 90°, Vertical FOV: 48°, Diagonal FOV: 107°
Lens Mount
M12*P 0.5
DORI Distance
2.8 mm
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
VIDEO
Max. Resolution
2880 X 1620
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
704x576,640x480, 352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 6 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
Quantity: 1
Range: 30m
Wavelength: 850nm
White LED
Quantity: 1
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 360°, Tilt: 0° to 85°
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
≥ 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
HANG
Hangkommunikáció
N/A
Hangbemenet
Yes
Hangkimenet
N/A
Hangtömörítés
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
HÁLÓZAT
Biztonság
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Szabvány
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
API
Open Network Video Interface (Profile S)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, Web UI
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
ONVIF
Yes
FIZIKAI KEZELŐFELÜLET
Hálózati csatlakozás
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
N/A
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 256 GB
Built-in Microphone
Yes; Records Anything Going on within a 15-ft Radius of the Camera
Built-in Speaker
N/A
Audio
N/A
FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection, Loitering Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login), Scene Change Detection
Alarm Linkage
Memory Card Video Recording, Message Push, White Light Flashing
Linkage Method
N/A
Output Notification
Message Push
DEEP LEARNING FUNCTION
Multi-Target-Type Detection
Supports Simultaneous Detection and Capture of Human Body and Vehicle
Face Capture
N/A
Face Comparison
N/A
ÁLTALÁNOS
Csomagolás tartalma
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature
-30–60 °C
Storage Temperature
-40–60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
95% or Less (Non-Condensing)
Material
Plastic
Net Weight
0.28 Kg
Gross Weight
0.47 Kg
Power Supply
12V DC ± 5%, Max. 7 W, 5.5mm Coaxial Power Plug
PoE: 802.3at, class 0, Max. 8 W
Protection
IP67, IK10
Product Dimensions (L x W x H)
Φ115x85.7 mm
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IC
