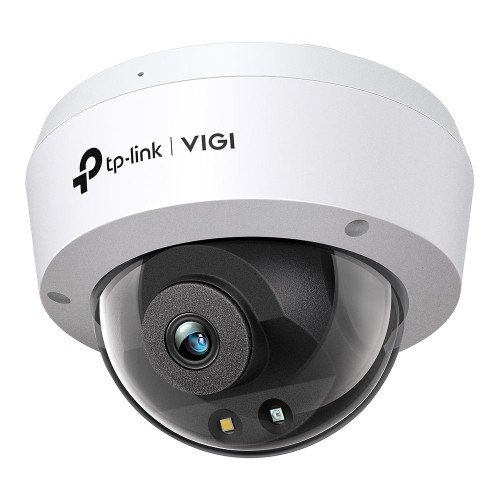

TP-Link VIGI C240 (4mm) 4MP Full-Color Dome Network Camera VIGI C240(4MM)
A kép csak illusztráció!
KAMERA
Képérzékelő
1/3” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Min. szükséges megvilágítás
Color: 0.005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
Optika
2.8 mm/ 4 mm
Aperture
2.8 mm: F1.6
4 mm: F1.6
Lens Mount
M12
Látószög
2.8mm:
Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
4mm:
Horizontal FOV: 79.7°, Vertical FOV:42.9°, Diagonal FOV: 93.9°
Forgatási/döntési szög
Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360°
Digital Noise Reduction
3D DNR
WDR
DWDR
Weatherproof Rating
IP67
LENS
Type
Fixed Focal Lens
Focal Length
2.8 mm/4 mm
Aperture
2.8 mm: F1.6
4 mm: F1.6
FOV
2.8 mm:
Horizontal FOV: 95.7°, Vertical FOV: 51.7°, Diagonal FOV: 113.0°
4 mm:
Horizontal FOV: 79.7°, Vertical FOV: 42.9°, Diagonal FOV: 93.9°
Lens Mount
M12
DORI Distance
2.8 mm:
Detect: 64 m (209 ft)
Observe: 27 m (87 ft)
Recognize: 13 m (42 ft)
Identify: 6 m (21 ft)
4 mm:
Detect: 80 m (262 ft)
Observe: 33 m (109 ft)
Recognize: 16 m (52 ft)
Identify: 8 m (26 ft)
VIDEO
Max. Resolution
2560 × 1440
Main Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Sub-Stream
Frame Rate:
50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps
60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution:
640x480,352x288, 320x240
Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
H.264 Type
Main Profile/High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
Main Stream: 256 Kbps to 4 Mbps
Sub-Stream: 64 Kbps to 512 Kbps
ILLUMINATOR
IR LED
Quantity: 1
Range: 30m
Wavelength: 850nm
White LED
Quantity: 1
Range: 30m
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
ANGLE ADJUSTMENT (MANUAL)
Range
Pan: 0° to 355°
Tilt: 0° to 75°
Image Settings
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR,
White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
DWDR
SNR
≥ 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
1 Region
OSD Setting
Yes
HANG
Hangkommunikáció
N/A
Hangbemenet
Yes
Hangkimenet
N/A
Hangtömörítés
Yes
Audio Sampling Rate
8KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
HÁLÓZAT
Biztonság
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
Szabvány
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS,
RTSP, NTP, UPnP UDP, SSL/TLS
API
ONVIF
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, VIGI Security Manager, VIGI NVR, Web
Web Browser
Google Chrome® 57 and above
Firefox® 52 and above
Safari® 11 and above
Microsoft® Edge 91 and above
Cloud
Yes
ONVIF
Yes
FIZIKAI KEZELŐFELÜLET
Hálózati csatlakozás
1 RJ45 10/100M Self-Adaptive Ethernet Port
Alarm
N/A
Reset Button
N/A
Power
DC Power Port
Gomb
-
Video Output
-
On-board Storage
Built-in Memory Card Slot, Support MicroSD Card, Up to 256 GB
Built-in Microphone
Yes
Built-in Speaker
N/A
Audio
N/A
FIGYELMEZTETÉSI ÉS ESEMÉNYKEZELÉSI VEZÉRLÉS
Smart Event
Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, People Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
Alarm Linkage
White Light Flashing, Message Push
Linkage Method
N/A
Output Notification
Message Push
ÁLTALÁNOS
Csomagolás tartalma
VIGI Network Camera
Quick Start Guide
Waterproof Cable Attachments
Mounting Accessories
Operating Temperature
-30–60 °C
Storage Temperature
-40–60 °C
Storage Humidity
95% or Less (Non-Condensing)
Operating Humidity
95% or Less (Non-Condensing)
Méret (Ma x Sz x Mé)
115 × 115 × 86 mm
Material
Plastic
General Features
Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening
Net Weight
0.28 Kg
Gross Weight
0.46 Kg
Power Consumption
12V DC: Max 5.4W
PoE: Class 0
Power Supply
12V DC ± 5%, 5.5mm Coaxial Power Plug
PoE (802.3af/at, class 0)
Vandal Resistant
IK10
Protection
IP67, IK10
Product Dimensions (L x W x H)
115× 86× 115 mm
Certifications
CE/BSMI/VCCI/ONVIF
VIDEÓ/KÉP
Videó tömörítés
Main Stream: H.265+/H.265/H.264+/H.264
Sub-Stream: H.265/H.264
Kép frissítés (frame) és felbontás
Main Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 2560x1440,2304x1296, 2048x1280, 1920x1080, 1280x720
Sub-Stream:
Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
Resolution: 640x480,352x288, 320x240
Max. Resolution
4MP (2560 × 1440)
Videótovábbítás
Main Stream
Sub-Stream
Képbeállítás
Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software, Rotation(90°/270°)
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Video Bit Rate
64 Kbps to 4 Mbps
Day/Night Switch
Day/Night/Auto/Schedule
SMART FEATURE-SET
Smart Event
Human & Vehicle Classification, Intrusion Detection, Line-Crossing Detection, Human Detection, Vehicle Detection, Region Entering Detection, Region Exiting Detection, Object Abandoned Detection, Object Removal Detection
Basic Event
Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Linkage Method
Trigger Notification: ONVIF, HTTPS
Region of Interest
1 Region
