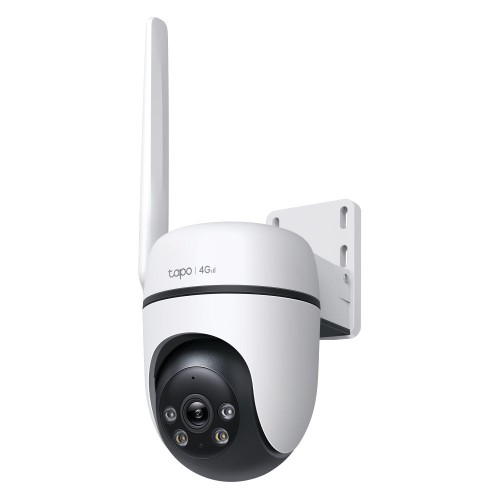

TP-Link Tapo C501GW Outdoor Pan/Tilt 4G LTE Camera TAPO C501GW

??????









?????????????????? ??????

1/2.9” CMOS Sensor





???????

Focal Length: 3.17 mm

Aperture: F1.65

Field of View: 122° (Diagonal), 105°(Horizontal), 59°(Vertical)





Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 60° (130° Tilt Coverage)





Night Vision

850 nm IR LED (98 ft / 29.9 m), starlight color night vision





Interface & Button

1× DC Port

1× Ethernet Port, PoE

1× RESET Button

1× MicroSD Card Slot (Up to 512GB)

1× Nano-SIM Card Slot















VIDEO & AUDIO









Maximum Resolution

1920 × 1080 px





Frame Rate

30 fps





Video Compression

H.264





Live View

Yes





Audio Input & Output

Built-in Microphone and Speaker





Audio Communication

Two-Way Audio with Noise Cancellation





Siren Volume

99 dB  (Level measured at 4-inch/10-cm distance)















STORAGE









Local Storage

MicroSD Card Slot on Camera (Up to 512 GB)

General Information about using MicroSD Cards >





Cloud Storage

Tapo Care Cloud Storage Services (Subscription required)















DETECTION and NOTIFICATIONS









AI Detection

Motion Detection

Person Detection

Pet Detection

Vehicle Detection

Tamper Detection

Line-Crossing Detection

Meow Detection

Bark Detection

Glass-Breaking Detection





Activity Zones

Yes





Output Notification

System Notification

System Notification with Snapshot (Tapo Care Services)















?????









Network Connectivity

3G/4G LTE/LAN Cable





RTSP

Yes





ONVIF

Yes















4G









Frequency

LTE-FDD: B1/3/5/7/8/20/28, LTE-TDD: B38/40/41















??????????









Power Source

12V DC Power Adapter

PoE: 802.3 af/at





Input Voltage

100-240 V, 50/60 Hz





Output Voltage

DC Power:12V, 1A















???? ??????????????









Smart Integration

Google Assistant, Amazon Alexa





Weather Resistance

IP66





System Requirements

Tapo App: iOS 9.0 or higher, Andriod 4.4 or higher





Mounting Options

Ceiling-Mounted

Wall-Mounted

Pole-Mounted (Pole-Mounting loops required but not included)





?????? ??????????? ??? ??????

-30?~60?





Storage Temperature

-40?~60?





?????? ???????? ??? ??????

10%~90% RH, Non-condensing





Storage Humidity

0~90% RH, Non-condensing





Dimensions

Camera Dimensions: 5.15× 3.31×4.57 in (130. 8× 84.0 × 116.1 mm)

Camera Dimensions with included antennas and bracket

5.5 × 4.03 × 9.22 in (139.8 × 102.3 × 234.2 mm)





?????????? ?? ??????

Tapo C501GW Camera

Detachable Antenna

DC Power Adapter

Mounting Template

Mounting Bracket

Mounting Anchors

Bracket Screws

Mounting Screws

Waterproof Seal

Waterproof Cable Attachments

Quick Start Guide





Certifications

CE,NTRA,RCM,VCCI,NCC,BSMI,ROH
