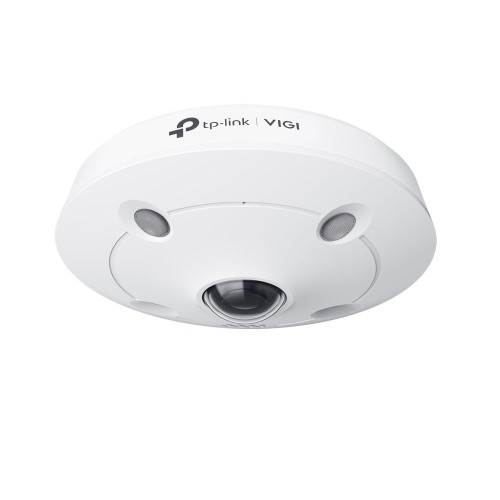

TP-Link InSight S655I VIGI 5MP IR Fisheye Network Camera INSIGHT S655I

Garancia: 3 Év







Kamera









Képérzékelő

1/2.7” Progressive Scan CMOS





Shutter Speed

1/3 to 1/10000 s





Slow Shutter

Yes





Min. szükséges megvilágítás

Color: 0.01 Lux; 0 Lux with IR light





Day/Night Mechanism

IR Cut Filter





Day/Night Switch

Unified/ Scheduled/ Auto















LENS









Type

Fixed Focal Lens





Focal Length

1.44 mm





Aperture

F2.0





FOV

Horizontal FOV: 180°, Vertical FOV: 180°, Diagonal FOV:180°





Lens Mount

M12*P0.5





DORI Distance

Detect: 28.8 m (94 ft)

Observe:12 m (39 ft)

Recognize: 5.7 m (19 ft)

Identify: 2.8 m (9 ft)















Fisheye Display









Installation

Ceiling Mount; Wall Mount; Pendant Mount§





Display Mode

• Ceiling Mount:

Fisheye, AR Dewarp, 180 Panorama, 360 Panorama

Cylinder, 2PTZ, 4PTZ, Fisheye + 8PTZ, Fisheye + 3PTZ, 360 Panorama + 8PTZ, 360 Panorama + 6PTZ, 360 Panorama + PTZ



• Wall Mount:

Fisheye, 360 Panoramic Unwrap, 360 Panoramic Unwrap+3PTZ, 360 Panoramic Unwrap+8PTZ, 4PTZ, Fisheye + 3PTZ, Fisheye + 8PTZ















Angle Adjustment (Manual)









Range

N/A















ILLUMINATOR









IR LED

• Quantity: 4

• Range: 30m

• Wavelength: 850nm





White LED

N/A





Illuminator On/Off Control

Auto/Scheduled/Always on/Always off















VIDEO









Max. Resolution

2560 × 1920





Main Stream

• Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



• Resolution:

2560 × 1920, 2256 × 1696, 2048 × 1536, 1280 × 960



Note:

If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

If WDR is on, the frame rate only supports up to 15fps.





Sub-Stream

• Frame Rate:

50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps

60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps



• Resolution:

640 × 480, 320 × 240



Note: If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.

If WDR is on, the frame rate only supports up to 15fps.





Bit Rate Control

CBR, VBR





Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264

• Sub-Stream: H.265/H.264





H.264 Type

High Profile





H.264+

Main Stream Supported





H.265 Type

Main Profile





H.265+

Main Stream Supported





Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps

• Sub-Stream: 64 Kbps to 512 Kbps
























Image Settings

• Brightness

• Contrast

• Saturation

• Sharpness

• Exposure

• WDR,

• White Balance

• Prevent Overexposure to Infrared Light

• HLC Adjustable by Client Software





Image Enhancement

BLC/3D DNR/HLC/SmartIR





Wide Dynamic Range

120dB





SNR

≥ 52 dB





Image Parameters Switch

Yes





Privacy Mask

Up to 4 Masks





ROI

1 Region





OSD Setting

Yes















Hang









Hangkommunikáció

Two-Way Audio





Hangbemenet

Yes





Hangkimenet

Yes





Hangtömörítés

Yes





Audio Sampling Rate

8KHz





Environment Noise Filtering

Yes





Audio Bit Rate

64 Kbps(G.711 alaw)















Hálózat









Szabvány

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP





ONVIF

Yes





API

Open Network Video Interface (Profile S/T/G)





Simultaneous Live View

3 Main Streams & 3 Sub-Streams





Client

Utility, VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS





Web Browser

• Google Chrome® 57 and above

• Firefox® 52 and above

• Safari® 11 and above

• Microsoft® Edge 91 and above





Cloud

Yes





Biztonság

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication















Figyelmeztetési és eseménykezelési vezérlés









Smart Event

• Intrusion Detection

• Line-Crossing Detection

• Region Entering Detection

• Region Exiting Detection

• Abnormal Sound Detection





Basic Event

• Motion Detection

• Video Tampering Detection

• Exception ( Illegal Login)





Alarm Linkage

• Memory Card Video Recording

• Message Push

• Audible Warning





Linkage Method

N/A





Output Notification

• Message Push

• Email Alarm

• Upload Capture to FTP















Fizikai kezelőfelület









Hálózati csatlakozás

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE





Alarm

N/A





Reset Button

Yes





Power

DC Power Port





On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§





Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera





Built-in Speaker

Yes





Audio

N/A















Általános









Operating Temperature

-30–60 °C





Storage Temperature

-40–60 °C





Operating Humidity

95% or Less (Non-Condensing)





Storage Humidity

95% or Less (Non-Condensing)





Csomagolás tartalma

• VIGI Network Camera

• Quick Start Guide

• Waterproof Cable Attachments

• Mounting Accessories





Material

Metal





Net Weight

• 0.44 Kg ( without Mounting Accessories)

• 0.48 Kg ( with Mounting Accessories)





Power Supply

• 12V DC ± 5%, Max. 11.76 W, 5.5mm Coaxial Power Plug

• PoE: 802.3af/at, class 0, Max. 12.14W





Protection

IP67 Weatherproof, IK10 Vandal Proof





Product Dimensions (L x W x H)

5.2 × 5.2 × 2.2 in (132 × 132 × 56mm)





Certifications

CE; NTRA; KC; FCC; VCCI; BSMI; ONVIF
