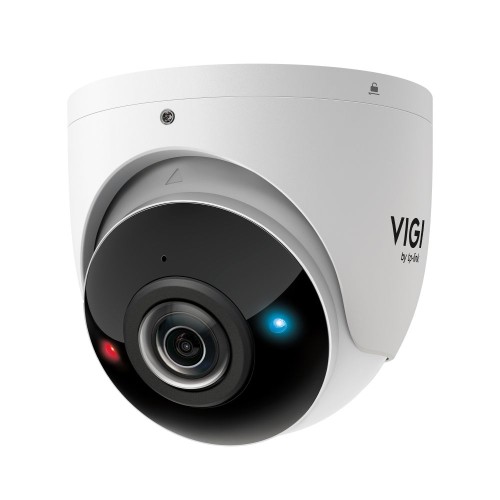

TP-Link InSight S485PI VIGI 8MP IR Panoramic Turret Network Camera INSIGHT S485PI

CAMERA





Image Sensor

1/2.7“ Progressive Scan CMOS



Shutter Speed

1/3 to 1/10000 s



Slow Shutter

Yes



Minimum Illumination

0.005 Lux; 0 Lux with IR light



Day/Night Mechanism

IR Cut Filter



Day/Night Switch

Unified/ Scheduled/ Auto







LENS





Type

Fixed Focal Lens



Focal Length

1.65 mm



Aperture

F2.0



FOV

1.65mm:• Horizontal FOV: 180°• Vertical FOV: 86°• Diagonal FOV: 180°



Lens Mount

M12



DORI Distance

1.65mm• Detect: 144.36 ft (44 m)• Observe: 60.15 ft (18.33 m)• Recognize: 28.87 ft (8.8 m)• Identify: 14.44 ft (4.4 m)







Angle Adjustment (Manual)





Range

Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°







ILLUMINATOR





IR LED

Quantity: 4Range: 65.62 ft (20 m)Wavelength: 850 nm



Illuminator On/Off Control

Auto/Scheduled/Always on/Always off







VIDEO





Max. Resolution

3840x2160



Main Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:3840x2160,2560x1440,2304x1296,2048x1280,1920x1080,1280x720Note:• If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.



Sub-Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480,704x576, 640x480, 640x360,352x288, 320x240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.



Bit Rate Control

CBR, VBR



Video Compression

Main Stream: H.265+/H.265/H.264+/H.264Sub-Stream: H.265/H.264



H.264 Type

High Profile



H.264+

Main Stream Supported



H.265 Type

Main Profile



H.265+

Main Stream Supported



Video Bit Rate

Main Stream: 256 Kbps to 8 MbpsSub-Stream: 64 Kbps to 1024 Kbps












Image Settings

• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software



Image Enhancement

BLC/3D DNR/HLC/SmartIR



Wide Dynamic Range

120 dB



SNR

? 52 dB



Image Parameters Switch

Yes



Privacy Mask

Up to 4 Masks



ROI

4 Region



OSD Setting

Yes







AUDIO





Audio Communication

Two-Way Audio



Audio Input

Built-in MicrophoneAudio In Interface



Audio Output

Built-in SpeakerAudio Out Interface



Audio Compression

Yes



Audio Sampling Rate

8 KHz



Environment Noise Filtering

Yes



Audio Bit Rate

64 Kbps(G.711 alaw)







NETWORK





Protocol

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP



ONVIF

Yes



API

Open Network Video Interface (Profile S/T/G)



Simultaneous Live View

3 Main Streams & 3 Sub-Streams



Client

VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS



Web Browser

Google Chrome® 57 and aboveFirefox® 52 and aboveSafari® 11 and aboveMicrosoft® Edge 91 and above



Cloud

Yes



Security

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication







ALARM AND EVENT MANAGEMENT





Smart Event

• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection



Basic Event

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device



Alarm Linkage

• Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm







Deep Learning Function





People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.3







INTERFACES





Network Interface

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE



Alarm

1 Alarm In, 1 Alarm OutRed-Blue Warning Lights



Reset Button

Yes



Power

DC Power Port



On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*5



Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera



Built-in Speaker

Yes



Audio

1 Audio In, 1 Audio Out







GENERAL





Operating Temperature

-30 to 60 °C



Storage Temperature

-40 °C to 60 °C



Operating Humidity

95% or Less (Non-condensing)



Storage Humidity

95% or Less (Non-condensing)



Package Contents

VIGI Network CameraQuick Start GuideWaterproof Cable AttachmentsMounting Accessories



Material

Metal



Net Weight

0.76 Kg



Power Supply

• 12V DC ± 5%, Max. 18 W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, class 4, Max. 21 W



Protection

IP67 Waterproof, IK10 Vandal Proof



Product Dimensions (L x W x H)

4.4 × 4.4 × 4.3 in (112.3 × 112.3 × 110.2 mm)



Certifications

CE, NTRA, KC, FCC, VCCI, BSMI, ONVIF, IP67, IK10
