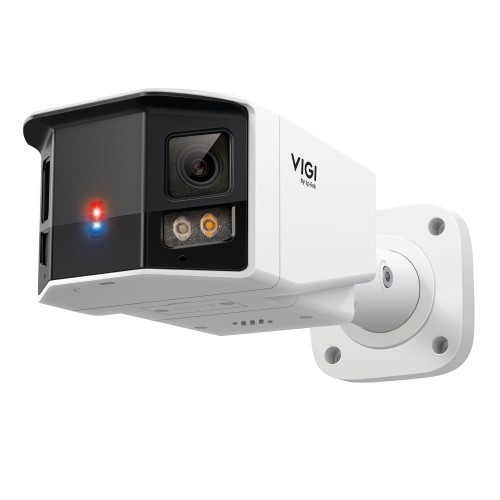

TP-Link InSight S385DPS VIGI 8MP Outdoor ColorPro Panoramic Bullet Network Camera INSIGHT S385DPS
A kép csak illusztráció!
CAMERA
Image Sensor
Dual 1/1.79” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
5 mm
Aperture
Dual F1.0
FOV
• Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180°
Lens Mount
M16
DORI Distance
5mm:• D: 249 ft (76 m)• O: 95 ft (29 m)• R: 46 ft (14 m)• I: 23 ft (7 m)
Angle Adjustment (Manual)
Range
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED
• Quantity: 2• Range: 164 ft (50 m)†• Wavelength: 850 nm
White LED
• Quantity: 2• Range: 164 ft (50 m)†
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
5456×1520
Main Stream
• Frame Rate:50Hz:1fps 5fps 10fps 15fps 20fps 25fps60Hz:1fps 5fps 10fps 15fps 20fps 24fps• Resolution:5456×1520, 4096×1152, 2160×608Note:Enabling people counting or object attribute analysis limits the frame rate to 20fps.
Sub-Stream
• Frame Rate:50Hz:1fps 5fps 10fps 15fps 20fps 25fps60Hz:1fps 5fps 10fps 15fps 20fps 24fps• Resolution:2160×608, 1280×360Note:Enabling people counting or object attribute analysis limits the frame rate to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
• Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings
• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
? 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
4 Regions
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Built-in Dual-MicrophoneAudio In Interface
Audio Output
Built-in SpeakerAudio Out Interface
Audio Compression
Yes
Audio Sampling Rate
8 KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
ONVIF
Yes
API
Open Network Video Interface (Profile S/T/G)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser
• Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection
Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device
Alarm Linkage
• Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm
Deep Learning Function
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
1 Alarm In, 1 Alarm OutRed-Blue Warning Lights
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone
Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker
Yes
Audio
1 Audio In, 1 Audio Out
GENERAL
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Content
• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories
Material
Metal
Net Weight
1.12 kg
Power Supply
• 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W
Protection
IP67 Weatherproof, IK10 Vandal-Proof
Product Dimensions (L x W x H)
10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm)
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
Image Sensor
Dual 1/1.79” Progressive Scan CMOS
Shutter Speed
1/3 to 1/10000 s
Slow Shutter
Yes
Minimum Illumination
0.0005 Lux; 0 Lux with IR/White Light
Day/Night Mechanism
IR Cut Filter
Day/Night Switch
Unified/ Scheduled/ Auto
LENS
Type
Fixed Focal Lens
Focal Length
5 mm
Aperture
Dual F1.0
FOV
• Horizontal FOV: 180°, Vertical FOV: 51°, Diagonal FOV: 180°
Lens Mount
M16
DORI Distance
5mm:• D: 249 ft (76 m)• O: 95 ft (29 m)• R: 46 ft (14 m)• I: 23 ft (7 m)
Angle Adjustment (Manual)
Range
Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°
ILLUMINATOR
IR LED
• Quantity: 2• Range: 164 ft (50 m)†• Wavelength: 850 nm
White LED
• Quantity: 2• Range: 164 ft (50 m)†
Illuminator On/Off Control
Auto/Scheduled/Always on/Always off
VIDEO
Max. Resolution
5456×1520
Main Stream
• Frame Rate:50Hz:1fps 5fps 10fps 15fps 20fps 25fps60Hz:1fps 5fps 10fps 15fps 20fps 24fps• Resolution:5456×1520, 4096×1152, 2160×608Note:Enabling people counting or object attribute analysis limits the frame rate to 20fps.
Sub-Stream
• Frame Rate:50Hz:1fps 5fps 10fps 15fps 20fps 25fps60Hz:1fps 5fps 10fps 15fps 20fps 24fps• Resolution:2160×608, 1280×360Note:Enabling people counting or object attribute analysis limits the frame rate to 20fps.
Bit Rate Control
CBR, VBR
Video Compression
• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264
H.264 Type
High Profile
H.264+
Main Stream Supported
H.265 Type
Main Profile
H.265+
Main Stream Supported
Video Bit Rate
• Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 1024 Kbps
Image Settings
• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software
Image Enhancement
BLC/3D DNR/HLC/SmartIR
Wide Dynamic Range
120 dB
SNR
? 52 dB
Image Parameters Switch
Yes
Privacy Mask
Up to 4 Masks
ROI
4 Regions
OSD Setting
Yes
AUDIO
Audio Communication
Two-Way Audio
Audio Input
Built-in Dual-MicrophoneAudio In Interface
Audio Output
Built-in SpeakerAudio Out Interface
Audio Compression
Yes
Audio Sampling Rate
8 KHz
Environment Noise Filtering
Yes
Audio Bit Rate
64 Kbps(G.711 alaw)
NETWORK
Protocol
TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP, SMTP, SNMP
ONVIF
Yes
API
Open Network Video Interface (Profile S/T/G)
Simultaneous Live View
3 Main Streams & 3 Sub-Streams
Client
VIGI App, Web UI, VIGI VMS, VIGI Cloud VMS, VIGI Config Tool, VIGI PC Client
Web Browser
• Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above
Cloud
Yes
Security
Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication, 802.1X Authentication
ALARM AND EVENT MANAGEMENT
Smart Event
• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection
Basic Event
• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)• Alarm Input Device
Alarm Linkage
• Memory Card Video Recording• Upload to FTP Server• Alarm Output Device• Push Notifications• Send to Alarm Server• Active Defence-Sound Alarm• Active Defence-Light Alarm• Email Alarm
Deep Learning Function
People & Vehicle Analytics
Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.‡
INTERFACES
Network Interface
1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
Alarm
1 Alarm In, 1 Alarm OutRed-Blue Warning Lights
Reset Button
Yes
Power
DC Power Port
On-board Storage
Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB*
Built-in Microphone
Yes; Records Anything Going on within a 16.4-ft (5 m) Radius of the Camera
Built-in Speaker
Yes
Audio
1 Audio In, 1 Audio Out
GENERAL
Operating Temperature
-30 °C to 60 °C (-22 °F to 140 °F)
Storage Temperature
-40 °C to 60 °C (-40 °F to 140 °F)
Operating Humidity
95% or Less (Non-Condensing)
Storage Humidity
95% or Less (Non-Condensing)
Package Content
• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories
Material
Metal
Net Weight
1.12 kg
Power Supply
• 12V DC ± 5%, Max. 18W, 5.5 mm Coaxial Power Plug• PoE: 802.3at, Class 4, Max. 21W
Protection
IP67 Weatherproof, IK10 Vandal-Proof
Product Dimensions (L x W x H)
10.5 × 4.6 × 3.5 in (266 × 116 × 90 mm)
Certifications
CE, NTRA, VCCI, KC, BSMI, FCC, IP67, IK10, ONVIF
