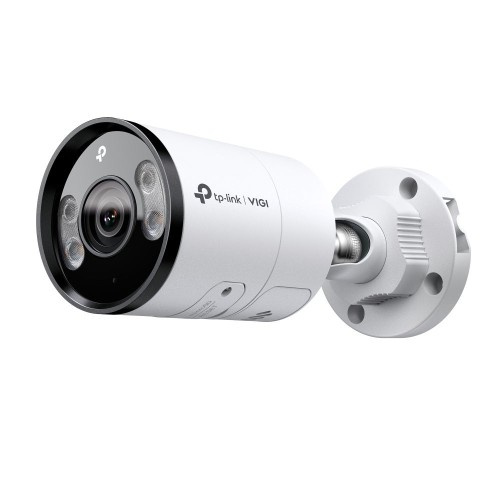

TP-Link InSight S355 VIGI 5MP Outdoor Full-Color Bullet Network Camera INSIGHT S355(6MM)

Kamera





Képérzékelő

1/2.7” Progressive Scan CMOS



Shutter Speed

1/3 to 1/10000 s



Slow Shutter

Yes



Min. szükséges megvilágítás

0.005 Lux; 0 Lux with IR/White light



Day/Night Mechanism

IR Cut Filter



Day/Night Switch

Unified/ Scheduled/ Auto







LENS





Type

Fixed Focal Lens



Focal Length

2.8/4/6 mm



Aperture

F1.6



FOV

• 2.8 mm:Horizontal FOV: 111.4°, Vertical FOV: 58.8°, Diagonal FOV: 134°• 4 mm:Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°• 6 mm:Horizontal FOV: 57.3°, Vertical FOV: 31.3°, Diagonal FOV: 67.2°



Lens Mount

M12*P 0.5



DORI Distance

• 2.8 mmDetect: 64 m (210 ft)Observe: 27 m (89 ft)Recognize: 13 m (43 ft)Identify: 6 m (20 ft)• 4 mmDetect: 80 m (262 ft)Observe: 33 m (108 ft)Recognize: 16 m (52 ft)Identify: 8 m (26 ft)• 6 mmDetect: 120 m (394 ft)Observe: 50 m (164 ft)Recognize: 24 m (79 ft)Identify: 12 m (39 ft)







Angle Adjustment (Manual)





Range

Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°







ILLUMINATOR





IR LED

• Quantity: 2• Range: 30m• Wavelength: 850nm



White LED

• Quantity: 2• Range: 30m



Illuminator On/Off Control

Auto/Scheduled/Always on/Always off







VIDEO





Max. Resolution

2880 X 1620



Main Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:2880x1620,2688x1520, 2304x1296, 2048x1280, 1920x1080,1280x720• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.



Sub-Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps• Resolution:848x480, 704x576, 640x480, 640x360, 352x288, 320x240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.



Bit Rate Control

CBR, VBR



Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264



H.264 Type

High Profile



H.264+

Main Stream Supported



H.265 Type

Main Profile*



H.265+

Main Stream Supported*



Video Bit Rate

• Main Stream: 256 Kbps to 6 Mbps• Sub-Stream: 64 Kbps to 512 Kbps












Image Settings

• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software



Image Enhancement

BLC/3D DNR/HLC/SmartIR



Wide Dynamic Range

120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported.



SNR

? 52 dB



Image Parameters Switch

Yes



Privacy Mask

Up to 4 Masks



ROI

1 Region



OSD Setting

Yes







Hang





Hangkommunikáció

Two-Way Audio



Hangbemenet

Yes



Hangkimenet

Yes



Hangtömörítés

Yes



Audio Sampling Rate

8KHz



Environment Noise Filtering

Yes



Audio Bit Rate

64 Kbps(G.711 alaw)







Hálózat





Szabvány

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS, FTP/SFTP, RTP, IPv4, IPv6, ARP



ONVIF

Yes



API

ONVIF Profile S/T/G



Simultaneous Live View

3 Main Streams & 3 Sub-Streams



Client

VIGI App, VIGI Security Manager, Web UI, VIGI VMS, VIGI Cloud VMS



Web Browser

• Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above



Cloud

Yes



Biztonság

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication







Figyelmeztetési és eseménykezelési vezérlés





Smart Event

• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection



Basic Event

• Motion Detection (Enhanced with Human & Vehicle Classification for more accurate alerts)• Video Tampering Detection• Exception ( Illegal Login)



Alarm Linkage

• Memory Card Video Recording• Message Push• Audible Warning• White Light Flashing



Linkage Method

N/A



Output Notification

Message Push







Deep Learning Function





People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.§







Fizikai kezelőfelület





Hálózati csatlakozás

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE



Alarm

N/A



Reset Button

Yes



Power

DC Power Port



On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB**



Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera



Built-in Speaker

Yes



Audio

N/A







Általános





Operating Temperature

-30–60 °C



Storage Temperature

-40–60 °C



Operating Humidity

95% or Less (Non-Condensing)



Storage Humidity

95% or Less (Non-Condensing)



Csomagolás tartalma

• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories



Material

Metal



Net Weight

0.525 Kg



Power Supply

• 12V DC ± 5%, Max. 9.7 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 10.7 W



Protection

IP67



Product Dimensions (L x W x H)

7.2 × 2.9 × 2.9 in (184 × 74 × 74 mm)



Certifications

CE, NTRA, VCCI, KC, BSMI, FCC, IC
