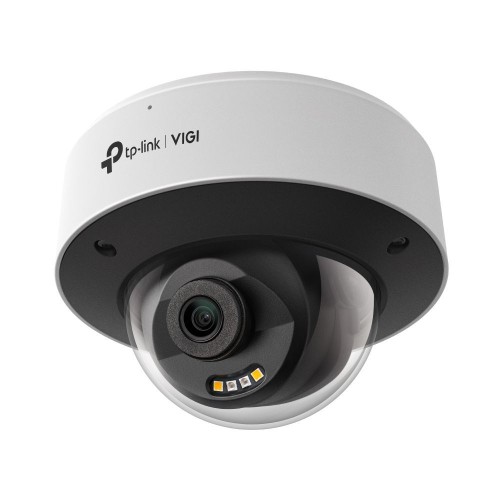

TP-Link InSight S285 (4mm) VIGI 8MP Full-Color Dome Network Camera INSIGHT S285(4MM)

Kamera





Képérzékelő

1/2.7” Progressive Scan CMOS



Shutter Speed

1/3 to 1/10000 s



Slow Shutter

Yes



Min. szükséges megvilágítás

0.005 Lux; 0 Lux with IR/White light



Day/Night Mechanism

IR Cut Filter



Day/Night Switch

Unified/ Scheduled/ Auto







LENS





Type

Fixed Focal Lens



Focal Length

2.8 mm / 4 mm



Aperture

F1.6



FOV

• 2.8 mm:Horizontal FOV: 110°, Vertical FOV: 58.1°, Diagonal FOV: 133.5°• 4 mm:Horizontal FOV: 88°, Vertical FOV: 46°, Diagonal FOV: 105.4°



Lens Mount

M12*P 0.5



DORI Distance

• 2.8 mmDetect: 85 m (278 ft)Observe: 35 m (116 ft)Recognize: 17 m (56 ft)Identify: 8 m (28 ft)• 4 mmDetect: 107 m (350 ft)Observe: 44 m (146 ft)Recognize: 21 m (70 ft)Identify: 11 m (35 ft)







Angle Adjustment (Manual)





Range

Pan: 0° to 346°, Tilt: 0° to 75°, Rotation: 0° to 355°







ILLUMINATOR





IR LED

• Quantity: 2• Range: 30m• Wavelength: 850nm



White LED

• Quantity: 2• Range: 30m



Illuminator On/Off Control

Auto/Scheduled/Always on/Always off







VIDEO





Max. Resolution

3840 x 2160



Main Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:3840x2160, 2560x1440, 2304x1296, 2048x1280, 1920x1080, 1280x720• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If HDR is turned on, the frame rate can only support up to 20fps.



Sub-Stream

• Frame Rate:50Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps60Hz: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps• Resolution:848x480, 704x576, 640x480, 640x360, 352x288, 320x240• Note:If the image rotation is set to 90° or 270°, the frame rate only supports up to 20fps.If HDR is turned on, the frame rate can only support up to 20fps.



Bit Rate Control

CBR, VBR



Video Compression

• Main Stream: H.265+/H.265/H.264+/H.264• Sub-Stream: H.265/H.264



H.264 Type

High Profile



H.264+

Main Stream Supported



H.265 Type

Main Profile



H.265+

Main Stream Supported



Video Bit Rate

• Main Stream: 256 Kbps to 8 Mbps• Sub-Stream: 64 Kbps to 512 Kbps












Image Settings

• Mirror• Brightness• Contrast• Saturation• Sharpness• Exposure• WDR• White Balance• Prevent Overexposure to Infrared Light• HLC Adjustable by Client Software



Image Enhancement

BLC/3D DNR/HLC/Smart IR



Wide Dynamic Range

120 dBNote: When People & Vehicle Analytics is enabled, only DWDR is supported.



SNR

? 52 dB



Image Parameters Switch

Yes



Privacy Mask

Up to 4 Masks



ROI

1 Region



OSD Setting

Yes







Hang





Hangkommunikáció

Two-Way Audio



Hangbemenet

Yes



Hangkimenet

Yes



Hangtömörítés

Yes



Audio Sampling Rate

8KHz



Environment Noise Filtering

Yes



Audio Bit Rate

64 Kbps(G.711 alaw)







Hálózat





Szabvány

TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS,FTP/SFTP,RTP,IPv4,IPv6,ARP



ONVIF

Yes



API

Open Network Video Interface (Profile S/T/G)



Simultaneous Live View

3 Main Streams & 3 Sub-Streams



Client

VIGI App, Web UI, VIGI VMS, Utility



Web Browser

• Google Chrome® 57 and above• Firefox® 52 and above• Safari® 11 and above• Microsoft® Edge 91 and above



Cloud

Yes



Biztonság

Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication







Figyelmeztetési és eseménykezelési vezérlés





Smart Event

• Intrusion Detection• Line-Crossing Detection• Region Entering Detection• Region Exiting Detection• Object Abandoned Detection• Object Removal Detection• Loitering Detection• People Detection• Vehicle Detection• Abnormal Sound Detection• Scene Change Detection



Basic Event

• Motion detection(Enhanced with Human & Vehicle Classification for more accurate alerts)• Camera Tampering• Exception (Illegal Login)



Alarm Linkage

• Memory Card Video Recording• Message Push• Audible Warning• White Light Flashing



Linkage Method

N/A



Output Notification

Message Push







Deep Learning Function





People & Vehicle Analytics

Search and filter to people or vehicle of interest based on many different attributes, making post-event search faster and easier.†







Fizikai kezelőfelület





Hálózati csatlakozás

1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE



Alarm

N/A



Reset Button

Yes



Power

DC Power Port



On-board Storage

Built-In Memory Card Slot, Support MicroSD Card, up to 512 GB§



Built-in Microphone

Yes; Records Anything Going on within a 15-ft Radius of the Camera



Built-in Speaker

Yes



Audio

N/A







Általános





Operating Temperature

-30–60 °C



Storage Temperature

-40–60 °C



Operating Humidity

95% or Less (Non-Condensing)



Storage Humidity

95% or Less (Non-Condensing)



Csomagolás tartalma

• VIGI Network Camera• Quick Start Guide• Waterproof Cable Attachments• Mounting Accessories



Material

Metal



Net Weight

0.62 Kg



Power Supply

• 12V DC ± 5%, Max. 11 W, 5.5 mm Coaxial Power Plug• PoE: 802.3af/at, class 0, Max. 12.3 W



Protection

IP67 Waterproof, IK10 Vandal Proof



Product Dimensions (L x W x H)

4.80 × 4.80 × 3.50 in (122 × 122 × 89 mm)



Certifications

CE, NTRA, FCC, VCCI, BSMI, ONVIF, KC
