STARTECH - USB3 BASED PANEL MOUNT USB CABLE A/HEADER

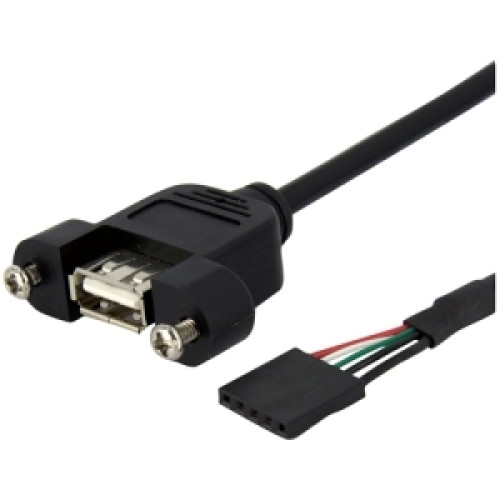

The USBPNLAFHD3 3ft Panel Mount USB Cable enables you to add a well-secured, easy to access USB 2.0 port to your PC, offering a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB connection.

The adapter features one female USB header connector and one female panel mount USB-A port and gives you an extension of 3ft, enabling you to place the cable as needed within the system case.

The USBPNLAFHD3 is backed by StarTech.com’s lifetime warranty for guaranteed reliability.



The StarTech.com Advantage



Customize your solutions by mounting a USB-A port on your PC

Configure your systems as needed, extend your USB motherboard connection by 3ft

Guaranteed reliability











Hardware





Cable Jacket Type

PVC - Polyvinyl Chloride





Cable Shield Type

Aluminum-Mylar Foil with Braid





Connector Plating

Nickel





Connector(s)





Connector A

1 - USB A (4 pin) Female





Connector B

1 - IDC (5 pin; Motherboard Header) Female





Environmental





Humidity

30%-50% RH





Operating Temperature

0°C to 40°C (32°F to 104°F)





Physical Characteristics





Cable Length

3 ft [0.9 m]





Color

Black





Connector Style

Straight





Product Height

0.4 in [10 mm]





Product Length

3 ft [0.9 m]





Product Weight

1.2 oz [34 g]





Product Width

1.5 in [38 mm]





Wire Gauge

24/28 AWG





Packaging Information





Package Quantity

1





Shipping (Package) Weight

1.4 oz [40 g]





What's in the Box





Included in Package

1 - 3 ft Panel Mount USB Cable - USB A to Motherboard Header Cable F/F
