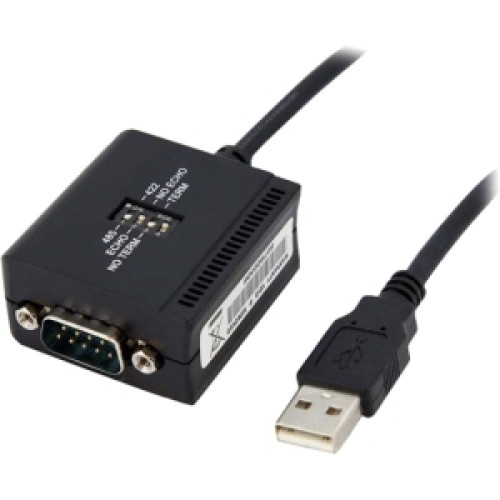

STARTECH 1 PORT USB SERIAL CABLE

Bus Type

USB 2.0





Chipset ID

FTDI - FT232RL





Interface

Serial





Port Style

Cable Adapter





Ports

1





Performance





Data Bits

7, 8





FIFO

256 Bytes





Max Baud Rate

921.6 Kbps





Parity

Even, Odd, None





Serial Protocol

RS-422/485





Stop Bits

1, 2





Connector(s)





Connector Type(s)

1 - USB A (4 pin) Male





External Ports

1 - DB-9 (9 pin; D-Sub) Male





Software





Microsoft WHQL Certified

Yes





OS Compatibility

Windows® 10 (32/64), 8 / 8.1 (32/64), 7 (32/64), Vista (32/64), XP (32/64), 2000, 98SE, XP Embedded, CE (4.2+)Windows® Server 2012, 2008 R2, 2003Mac OS® 10.x (tested up to 10.11)Linux 2.4.x / 2.6.x





Environmental





Humidity

5~95% RH





Operating Temperature

0°C to 55°C (32°F to 131°F)





Storage Temperature

-20°C to 85°C (-4°F to 185°F)





Physical Characteristics





Cable Length

6 ft [1.8 m]





Color

Black





Enclosure Type

Plastic





Product Height

0.9 in [22.1 mm]





Product Length

1.8 in [45 mm]





Product Weight

3.5 oz [100 g]





Product Width

1.6 in [41.5 mm]





Packaging Information





Shipping (Package) Weight

0.5 lb [0.2 kg]





What's in the Box





Included in Package

1 - USB to RS422/485 Serial Adapter







1 - Driver CD







1 - Installation Guide
