STARTECH DVI VGA KVM SWITCH

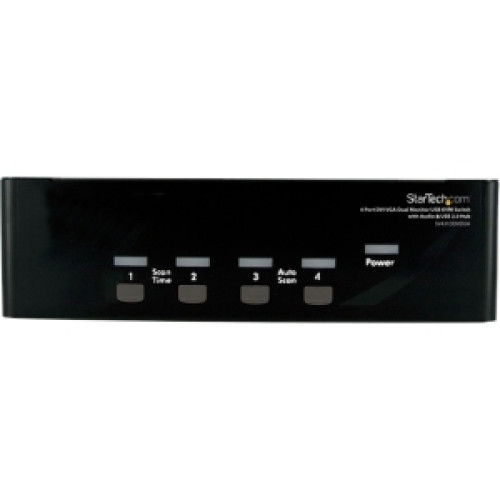

The SV431DDVDUA 4-port DVI VGA dual monitor KVM switch lets you control 4 Dual Display computers using a single USB mouse and keyboard peripheral set.

This dual view KVM switch provides 1 VGA and 1 DVI-I port per computer connection for high-resolution video, as well as audio switching capability between connected computers.

The DVI/VGA KVM switch features an integrated 2-port USB hub that allows USB 2.0 peripherals to be shared between connected computers, and offers a compact design with a rugged metal chassis for durable performance.

NOTE: While both DVI-I (analog) and DVI-D (digital) are supported by the KVM, source PCs must output the same signal for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. If necessary, please contact technical support for assistance identifying your source.

Backed by a StarTech.com 3-year warranty and free lifetime technical support.



The StarTech.com Advantage



High-resolution DVI and VGA ports support almost any dual display scenario; even with one DVI + VGA PC, and one dual DVI PC, an adapter can be used with this KVM to support your configuration

Integrated USB 2.0 hub and Mic/Audio ports allow the user to have full multimedia control of two computers and share USB peripherals eliminating the expense of duplicate devices

Absolutely no software or drivers required providing a completely OS independent KVM solution









Audio

Yes





Cables Included

No





Daisy-Chain

No





KVM Ports

4





Multi-Monitor

Yes





PC Interface

USB





PC Video Type

DVI+VGA





Rack-Mountable

Optional





Performance





DVI Support

Yes - Single Link





Hot-Key Selection

Yes





IP Control

No





Maximum Analog Resolutions

1920 x 1400





Maximum Digital Resolutions

1920 x 1200





Maximum Number of Users

1





Port Selection Support

Push Button and Hotkeys





Connector(s)





Console Interface(s)

1 - DVI-I (29 pin) Female







1 - VGA (15 pin; High Density D-Sub) Female







2 - 3.5 mm Mini-Jack (3 Position) Female







4 - USB A (4 pin) Female





Host Connectors

4 - 3.5 mm Mini-Jack (3 Position) Female







4 - DVI-I (29 pin) Female







4 - USB B (4 pin) Female







4 - VGA (15 pin; High Density D-Sub) Female





Software





OS Compatibility

OS independent; No software or drivers required





Special Notes / Requirements





Note

While both DVI-I (analog mode) and DVI-D (digital only) are supported by the KVM, both source PCs must output the same signal type for proper switching. It is recommended wherever possible to use DVI-D cables across all PC to KVM and KVM to Console connections. Please contact technical support for assistance identifying your source.





Indicators





LED Indicators

1 - Green - Power







2 - Green - PC Detected







2 - Red - PC Indicator





Power





Center Tip Polarity

Positive





Input Current

0.8A





Input Voltage

110 ~ 240 AC





Output Current

1.5A





Output Voltage

12 DC





Plug Type

M





Power Source

AC Adapter Included





Environmental





Humidity

80% RH





Operating Temperature

0°C to 40°C (32°F to 104°F)





Storage Temperature

-20°C to 60°C (-4°F to 140°F)





Physical Characteristics





Color

Black





Enclosure Type

Steel





Product Depth

5.1 in [130 mm]





Product Height

2.4 in [60 mm]





Product Length

6.4 in [163 mm]





Product Weight

43.6 oz [1236 g]





Product Width

8.7 in [220 mm]





Packaging Information





Shipping (Package) Weight

4 lb [1.8 kg]





What's in the Box





Included in Package

1 - Four Port KVM Switch







1 - Rubber Feet







1 - Universal Power Adapter (US/EU/UK) and AU in Australia







1 - User Manual
