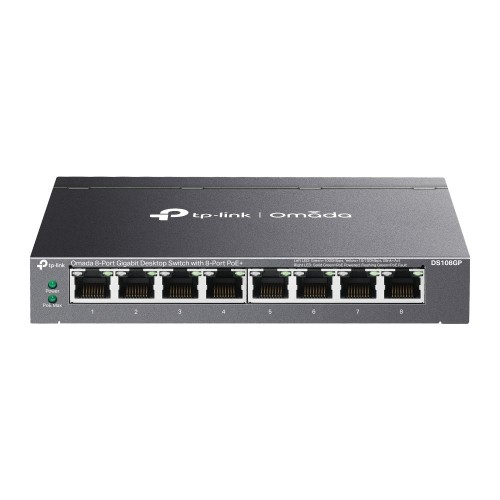

TP-LINK Switch 8x1000Mbps(8xPOE+) Fémházas (Omada), DS108GP DS108GP

HARDWARE FEATURES


Interface
• 8× 10/100/1000 Mbps RJ45 Ports• AUTO Negotiation• AUTO MDI/MDIX

Network Media
• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)EIA/TIA-568 100? STP (maximum 100m)• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)EIA/TIA-568 100? STP (maximum 100m)• 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)EIA/TIA-568 100? STP (maximum 100m)

Fan Quantity
Fanless

Physical Security Lock
Yes

External Power Supply
External Power Adapter(Output: 53.5VDC / 1.31A)

Packet Forwarding Rate
11.904 Mpps

PoE Ports (RJ45)
• Standard: 802.3 af/at compliant• PoE Ports: Ports 1–8• Power Supply: 65 W

Mac Address Table
4K

Jumbo Frame
16 KB

Switching Capacity
16 Gbps

Dimensions ( W x D x H )
6.2×4.0×1.0 in (158×101×25 mm)

Max Power Consumption
• 4.59 W (220/50 Hz no PD connected)• 75.75 W (220/50 Hz with 65 W PD connected)

Max Heat Dissipation
• 15.66 BTU/h (no PD connected)• 258.46 BTU/h (with 65 W PD connected)



SOFTWARE FEATURES


Transmission Method
Store-And-Forward

Advanced Functions
• Compatible With IEEE 802.3af/at Compliant PDs• IGMP Snooping• Mac Address Auto-Learning And Auto-Aging• IEEE802.3x Flow Control• 802.1p/DSCP QoS• Extend Mode Button (Ports 1–2, Up to 250 m PoE power supply and data transmission)• PoE Auto Recovery (Ports 1-8)



OTHERS


Certification
CE, FCC, RoHS

Package Contents
• DS108GP• Power Adapter• Installation Guide

Environment
• Operating Temperature: 0–40 ? (32–104 ?);• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
