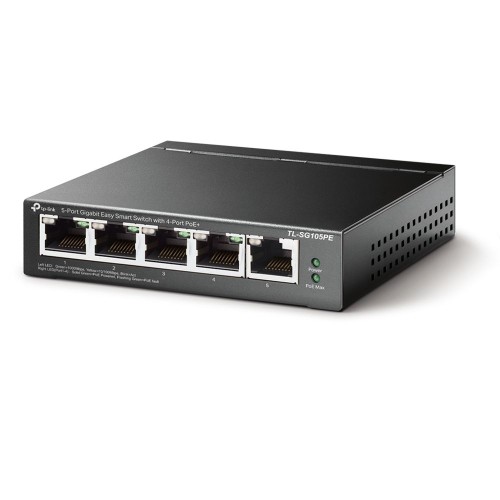

TP-LINK Switch 5x1000Mbps (4xPOE+), Fémházas Asztali, Easy Smart, TL-SG105PE TL-SG105PE

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at


Interface
Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX


Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)


Fan Quantity
Fanless


Power Supply
External Power Adapter (Output: 53.5 VDC/1.31 A)


PoE Ports (RJ45)
Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W


Max Power Consumption
4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)


Max Heat Dissipation
15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)







PERFORMANCE




Switching Capacity
10 Gbps


Packet Forwarding Rate
7.44 Mpps


MAC Address Table
2 K


Packet Buffer Memory
1.5 Mb


Jumbo Frame
16 KB







SOFTWARE FEATURES




Quality of Service
Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control


L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode


VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN


Management
Web-based GUI
Easy Smart Configuration Utility


Transmission Method
Store-And-Forward







OTHERS




Certification
FCC, CE, RoHS


Package Contents
TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet


System Requirements
Microsoft® Windows® for running Utility


Environment
Operating Temperature: 0?~40? (32?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing



TL-SG105PE KSH szám: 8517620000
