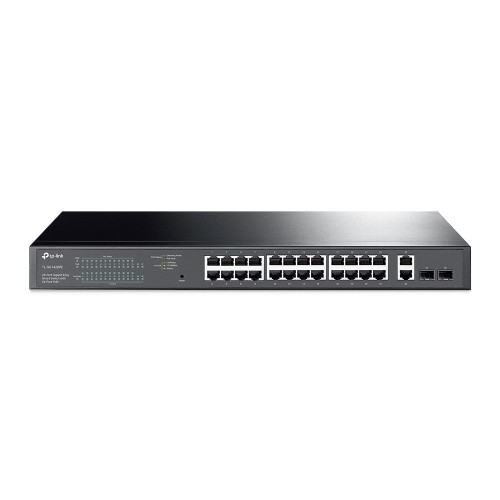

TP-LINK Switch 26x1000Mbps (24xPOE+) + 2xGigabit SFP, Menedzselhető, TL-SG1428PE TL-SG1428PE

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
IEEE 802.3af, IEEE 802.3at, IEEE 802.1q, IEEE 802.1p


Interface
26 10/100/1000 Mbps RJ45 Ports
2 Gigabit SFP Ports


Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)
1000BASE-X MMF, SMF


Fan Quantity
2 Fans


Physical Security Lock
Yes


Power Supply
100-240V AC, 50/60 Hz


PoE+ Ports(RJ45)
Standard: 802.3at/802.3af compliant
PoE+ Ports: 24 Ports
Power Supply: 250 W


Dimensions ( W x D x H )
17.3 × 8.7 × 1.73 in (440 × 220 × 44 mm)


Mounting
Rack Mountable


Max Power Consumption
27 W (220/50Hz. no PD connected)
304.7 W (220/50Hz. with 250 W PD connected)


Max Heat Dissipation
92.07 BTU/h (no PD connected)
1039.03 BTU/h (with 250 W PD connected)







PERFORMANCE




Switching Capacity
56 Gbps


Packet Forwarding Rate
41.7 Mbps


MAC Address Table
8K


Packet Buffer Memory
4.1 Mbit


Jumbo Frame
9 KB







SOFTWARE FEATURES




Quality of Service
Support Port-based 802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control


L2 Features
IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery


VLAN
Support up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN


Management
Web-Based GUI
Easy Smart Configuration Utility


Transmission Method
Store-And-Forward







OTHERS




Certification
CE, FCC, RoHS


Package Contents
TL-SG1428PE
Power Cord
Installation Guide
Rackmount Kit
Rubber Feet


Environment
Operating Temperature: 0°C~50°C (32°F~122°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5%~90% non-condensing



TL-SG1428PE KSH szám: 8517620000
