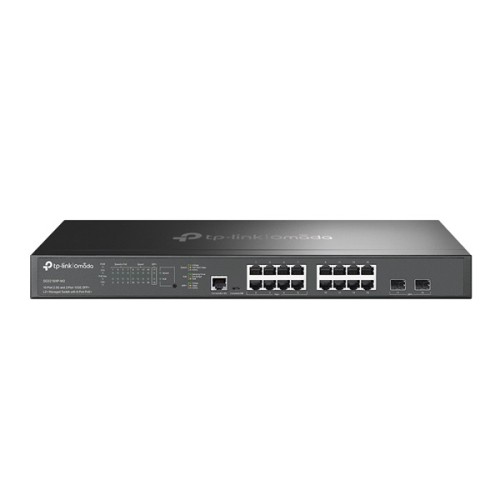

TP-Link SG3218XP-M2 switch - Omada, 16db 2,5 gigabites és 2db 10GE SFP+ port, 8 porton PoE+, L2+, menedzselt SG3218XP-M2

HARDVER JELLEMZŐK





Csatlakozások

• 16× 2.5 Gbps RJ45 Ports• 2× 10G SFP+ Slots• 1× RJ45 Console Port• 1× Micro-USB Console Port



Ventilátorok száma

2



Hálózati tápegység

100-240 V AC~50/60 Hz



PoE portok (RJ45)

• Standard: 802.3at/af compliant• PoE+ Ports(802.3at PoE): 8 Ports, up to 30 W per port• Power Budget: 240 W



Méretek (Sz x Mé x Ma)

17.3 × 7.1 × 1.7 in (440 × 180 × 44 mm)



Felszerelés

Rack Mountable



Max. áramfelvétel

299.4 W (110V/60Hz)(with 240 W PD connected)



Max Heat Dissipation

1021.64 BTU/h (110 V/60 Hz)(with 240 W PD connected)







MŰKÖDÉSI JELLEMZŐK





Switching teljesítmény

120 Gbps



Csomagtovábbítási sebesség

89.28 Mpps



Fizikai (MAC) cím tábla

16 K



Csomag puffer memória

12 Mbit



Jumbo Frame

9 KB







SZOFTVER JELLEMZŐK





QoS (szolgáltatás minősége)

• 8 priority queues• 802.1p CoS/DSCP priority• Queue scheduling- SP (Strict Priority)- WRR (Weighted Round Robin)- SP+WRR• Bandwidth Control- Port/Flow based Rating Limiting• Smoother Performance• Action for Flows- Mirror (to supported interface)- Redirect (to supported interface)- Rate Limit- QoS Remark



L3 jellemzők

• 32 IPv4/IPv6 Interfaces• Static Routing- 48 static routes• Static ARP- 128 Static Entries• Proxy ARP• Gratuitous ARP• DHCP Server• DHCP Relay- DHCP Interface Relay- DHCP VLAN Relay• DHCP L2 Relay



L2 és L2+ jellemzők

• Link Aggregation- static link aggregation- 802.3ad LACP- Up to 8 aggregation groups, containing 8 ports per group• Spanning Tree Protocol- 802.1d STP- 802.1w RSTP- 802.1s MSTP- STP Security: TC Protect, BPDU Filter, Root Protect• Loopback Detection- Port based- VLAN based• Flow Control- 802.3x Flow Control- HOL Blocking Prevention• Mirroring- Port Mirroring- CPU Mirroring- One-to-One- Many-to-One- Tx/Rx/Both



L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave- IGMP Snooping Querier- IGMP Authentication• IGMP Authentication• MLD Snooping- MLD v1/v2 Snooping- Fast Leave- MLD Snooping Querier- Static Group Config- Limited IP Multicast• MVR• Multicast Filtering: 256 profiles and 16 entries per profile



További jellemzők

• Automatic Device Discovery• Batch Configuration• Batch Firmware Upgrading• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule



VLAN

• VLAN Group- Max 4K VLAN Groups• 802.1Q Tagged VLAN• MAC VLAN: 256 Entries• Protocol VLAN: Protocol Template 16, Protocol VLAN 16• GVRP• VLAN VPN (QinQ)- Port-Based QinQ- Selective QinQ• Voice VLAN



Hozzáférés-jogosultsági lista (ACL)

• Time-based ACL• MAC ACL- Source MAC- Destination MAC- VLAN ID- User Priority- Ether Type• IP ACL-Source IP- Destination IP- Fragment- IP Protocol- TCP Flag- TCP/UDP Port- DSCP/IP TOS- User Priority• Combined ACL• Packet Content ACL• IPv6 ACL• Policy- Mirroring- Redirect- Rate Limit- QoS Remark• ACL apply to Port/VLAN



Biztonság

• IP-MAC-Port Binding- 512 Entries- DHCP Snooping- ARP Inspection- IPv4 Source Guard: 100 Entries• IPv6-MAC-Port Binding- 512 Entries- DHCPv6 Snooping- ND Detection- IPv6 Source Guard: 100 Entries• DoS Defend• Static/Dynamic Port Security- Up to 64 MAC addresses per port• Broadcast/Multicast/Unicast Storm Control- kbps/ratio control mode• 802.1X- Port base authentication- Mac base authentication- VLAN Assignment- MAB- Guest VLAN- Support Radius authentication andaccountability• AAA (including TACACS+)• Port Isolation• Secure web management through HTTPS with SSLv3/TLS 1.2• Secure Command Line Interface (CLI) management with SSHv1/SSHv2• IP/Port/MAC based access control



IPv6

• IPv6 Dual IPv4/IPv6• Multicast Listener Discovery (MLD) Snooping• IPv6 ACL• IPv6 Interface• Static IPv6 Routing• IPv6 neighbor discovery (ND)• Path maximum transmission unit (MTU) discovery• Internet Control Message Protocol (ICMP) version 6• TCPv6/UDPv6• IPv6 applications- DHCPv6 Client- Ping6- Tracert6- Telnet (v6)- IPv6 SNMP- IPv6 SSH- IPv6 SSL- Http/Https- IPv6 TFTP



MIBs

• MIB II (RFC1213)• Interface MIB (RFC2233)• Ethernet Interface MIB (RFC1643)• Bridge MIB (RFC1493)• P/Q-Bridge MIB (RFC2674)• RMON MIB (RFC2819)• RMON2 MIB (RFC2021)• Radius Accounting Client MIB (RFC2620)• Radius Authentication Client MIB (RFC2618)• Remote Ping, Traceroute MIB (RFC2925)• Support TP-Link private MIB







VEZÉRLÉS





Omada App

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.



Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller



Cloud Access

Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller.



Zero-Touch Provisioning

Yes. Requiring the use of Omada Cloud-Based Controller.



Management Features

• Web-based GUI• Command Line Interface (CLI) through the console port, telnet• SNMP v1/v2c/v3- Trap/Inform- RMON (1,2,3,9 groups)• SDM Template• DHCP/BOOTP Client• 802.1ab LLDP/LLDP-MED• DHCP AutoInstall• Dual Image, Dual Configuration• CPU Monitoring• Cable Diagnostics• EEE• Password Recovery• SNTP• System Log







EGYÉB JELLEMZŐK





Tanúsítványok

CE, FCC, RoHS



Csomagolás tartalma

• SG3218XP-M2 Switch• Power Cord• Quick Installation Guide• Rackmount Kit• Rubber Feet



Rendszerkövetelmény

Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.



Környezet

• Operating Temperature: 0–50 ? (32–122 ?);• Storage Temperature: -40–70 ? (-40–158 ?)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
