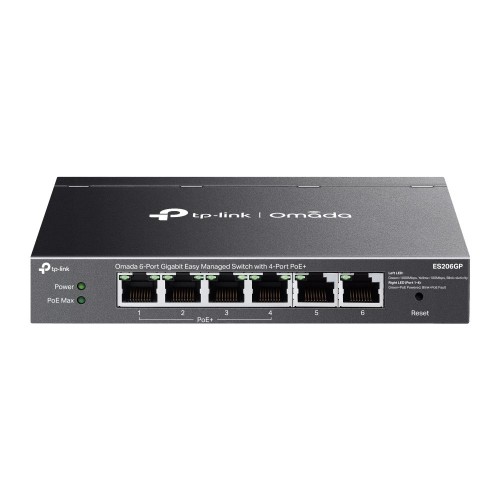

TP-Link ES206GP Omada 6-Port Gigabit Easy Managed Switch with 4-Port PoE+ ES206GP

Hardver jellemzők





Csatlakozások

• 6× 10/100/1000 Mbps RJ45 Ports (Ports 1–4 Support 802.3af PoE and 802.3at PoE+)• Auto-Negotiation/Auto MDI/MDIX



Ventilátorok száma

Fanless



Beüzemelés

• Desktop• Wall Mount



Fizikai biztonsági zár

?



Hálózati tápegység

DC Power Adapter (Output: 53.5VDC / 1.31A)



PoE portok (RJ45)

• Standard: 802.3af PoE and 802.3at PoE+ compliant• PoE Ports: 4 ports• PoE Budget: 65W available for all PoE+ ports, 30W max per port• Fast PoE & Perpetual PoE• PoE Auto Recovery‡• Up to 250m PoE transmission distance**



Méretek (Sz x Mé x Ma)

6.2 × 4.0 × 1.0 in (158 × 101 × 25 mm)



Surge Protection

±6kV







Működési jellemzők





Switching teljesítmény

12 Gbps



Csomagtovábbítási sebesség

7.4 Mpps



Fizikai (MAC) cím tábla

8K



Csomag puffer memória

4 Mbit



Jumbo Frame

15 KB







Szoftver jellemzők





QoS (szolgáltatás minősége)

• Port-based/802.1p/DSCP QoS• 8 Priority Queues• Priority Schedule Mode- WRR (Weighted Round Robin)• Queue Weight Config• Bandwidth Control- Port-Based Rating Limit• Storm Control- Multiple Control Modes (kbps/pps)- Broadcast/Multicast/Unknown-Unicast Control?



L2 jellemzők

• Static Link Aggregation• Loop Prevention / Loopback Detection• Flow Control- 802.3x Flow Control• Mirroring- Port Mirroring- One-to-One- Many-to-One- Ingress/Egress/Both• Port Statistics- Port Mirror Status- Traffic Statistics• 802.1ab LLDP



L2 Multicast

• IGMP Snooping- IGMP v1/v2/v3 Snooping- Fast Leave



VLAN

• MTU VLAN• Port-Based VLAN• 802.1Q Tag VLAN- Max 32 VLAN Groups- 4K VID



Továbbítás módja

Store-And-Forward







Vezérlés





Omada App

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.



Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller• Omada Software Controller



Cloud Access

Yes. Requires the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.



Zero-Touch Provisioning

Yes. Requires the use of Omada Cloud-Based Controller



Management Features

• Web-based GUI• DHCP Client• Cable Diagnostics• Automatic Device Discovery†• Batch Configuration†• Batch Firmware Upgrading†• Unified Configuration†







Egyéb jellemzők





Tanúsítványok

FCC, CE, RoHS



Csomagolás tartalma

• ES206GP• Power Adapter• Power Cord• Rubber Feet• Installation Guide



Környezet

• Operating Temperature: -5?~40? (23?~104?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%~90% non-condensing• Storage Humidity: 5%~90% non-condensing
