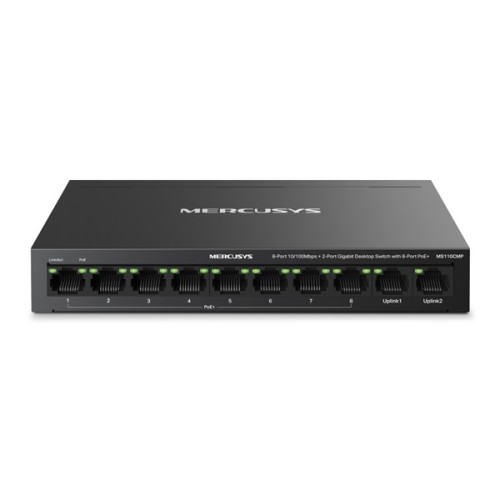

MERCUSYS Switch 8x100Mbps(8xPOE+) + 2xLAN(1000Mbps), Fémházas Asztali/Rackes, MS110CMP MS110CMP

Standards and Protocols




IEEE 802.3x Flow Control


PoE Ports


RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 115 W


Dimensions


6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)


Interfaces


8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX


External Power Supply


External Power Adapter (Output: 54V/2.2A)


Installation


Desktop / Wall Mount


Data Rates


10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex


Jumbo Frame


2 KB


Switching Capacity


5.6 Gbps


MAC Address Table


2K


Max Power Consumption


3.79W(220 V / 50 Hz, no PD connected)

130.49W(220 V / 50 Hz, with 115W PD connected


Max Heat Dissipation


12.92 BTH/h (no PD connected)

444.97 BTH/h(with 115W PD connected)

Others
Package Contents


• 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
• Power Adapter
• Quick Installation Guide


Environment


Operating Temperature: -10?~40? (14?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing

Hardware
