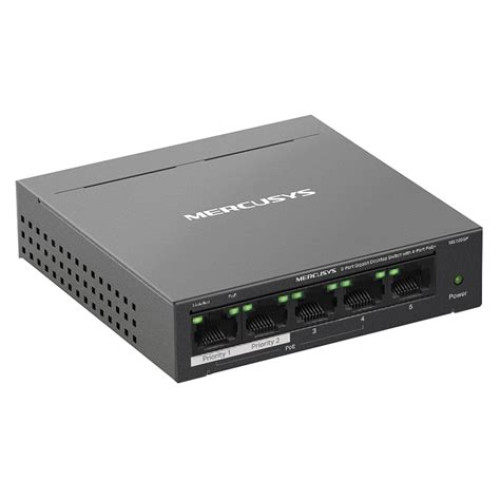

Mercusys MS105GP 5port gigabit switch MS105GP

Dimensions





99.8*98*25mm





PoE Ports





RJ45



Standard: Compliant with 802.3 af/at Powered Devices

PoE Ports: Port 1- Port 4

PoE Power Budget: 65 W





Interfaces





5× 10/100/1000Mbps Ports, Auto-Negotiation, Auto MDI/MDIX





External Power Supply





External Power Adapter (Output: 53.5V/1.31A)





Installation





Desktop



Wall Mount





Standards and Protocols





IEEE 802.3x Flow Control





Data Rates





10/100/1000 Mbps at Half Duplex

20/200/2000 Mbps at Full Duplex





Jumbo Frame





9 KB





Mac Address Table





2K





Max Power Consumption





3.13W(220 V / 50 Hz, no PD connected)



75.15W(220 V / 50 Hz, with 65W PD connected)





Max Heat Dissipation





10.64 BTH/h (no PD connected)



255.51 BTH/h(with 65W PD connected)









Hardware







Package Contents





• 5-Port Gigabit Desktop Switch with 4-Port PoE+(MS105GP)

• Power Adapter

• Quick Installation Guide





Environment





Operating Temperature: 0?~40? (32?~104?)

Storage Temperature: -40?~70? (-40?~158?)

Operating Humidity: 10%~90% RH non-condensing

Storage Humidity: 5%~95% RH non-condensing
