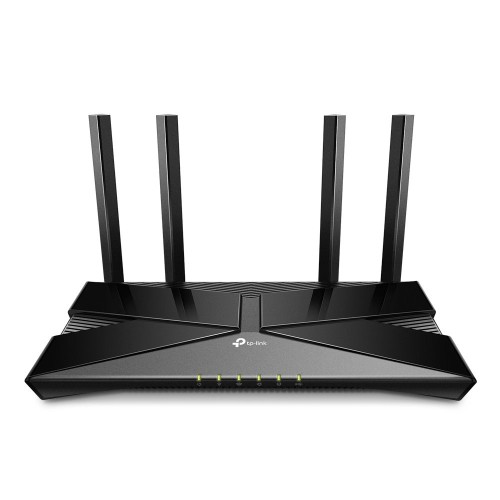

TP-LINK Wireless Router Dual Band AX1800 1xWAN(1000Mbps) + 4xLAN(1000Mbps) +1xUSB, ARCHER AX20 ARCHER AX20

Standards
Wi-Fi 6
IEEE 802.11ax/ac/n/a 5 GHz
IEEE 802.11ax/n/b/g 2.4 GHz


WiFi Speeds
AX1800
5 GHz: 1201 Mbps (802.11ax)
2.4 GHz: 574 Mbps (802.11ax)


WiFi Range
3 Bedroom Houses
4× Fixed High-Performance Antennas
Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming
Concentrates wireless signal strength towards clients to expand WiFi range

High-Power FEM
Improves transmission power to strengthen signal coverage


WiFi Capacity
High
Dual-Band
Allocate devices to different bands for optimal performance

OFDMA
Simultaneously communicates with multiple Wi-Fi 6 clients

Airtime Fairness
Improves network efficiency by limiting excessive occupation

4 Streams
Connect your devices to more bandwidth


Working Modes
Router Mode
Access Point Mode







HARDWARE




Processor
1.5 GHz Quad-Core CPU


Ethernet Ports
1× Gigabit WAN Port
4× Gigabit LAN Ports


USB Support
1× USB 2.0 Port

Supported Partition Formats:
NTFS, exFAT, HFS+, FAT32

Supported Functions:
Apple Time Machine
FTP Server
Media Server


Buttons
WPS/Wi-Fi Button
Power On/Off Button
LED On/Off Button
Reset Button


Power
12 V ? 1.5 A







BIZTONSÁG




WiFi Encryption
WPA
WPA2
WPA3
WPA/WPA2-Enterprise (802.1x)


Network Security
SPI Firewall
Access Control
IP & MAC Binding
Application Layer Gateway


Guest Network
1× 5 GHz Guest Network
1× 2.4 GHz Guest Network


VPN Server
OpenVPN
PPTP







SOFTWARE




Protocols
IPv4
IPv6


Parental Controls
URL Filtering
Time Controls


WAN Types
Dynamic IP
Static IP
PPPoE
PPTP
L2TP


Quality of Service
QoS by Device


Cloud Service
Auto Firmware Upgrade
OTA Firmware Upgrade
TP-Link ID
DDNS


NAT Forwarding
Port Forwarding
Port Triggering
DMZ
UPnP


IPTV
IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


DHCP
Address Reservation
DHCP Client List
Server


DDNS
TP-Link
NO-IP
DynDNS


Management
Tether App
Webpage
Check Web Emulator>







PHYSICAL




Dimensions (W×D×H)
10.2 × 5.3 ×1.5 in
(260.2 × 135.0 × 38.6 mm)


Package Contents
Wi-Fi Router Archer AX20
Power Adapter
RJ45 Ethernet Cable
Quick Installation Guide







OTHER




System Requirements
Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser

Cable or DSL Modem (if needed)

Subscription with an internet service provider (for internet access)


Certifications
FCC, CE, RoHS


Environment
Operating Temperature: 0?~40? (32? ~104?)
Storage Temperature: -40?~70? (-40? ~158?)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing







TEST DATA




WiFi Transmission Power
CE:
ARCHER AX20 KSH szám: 8517620000
