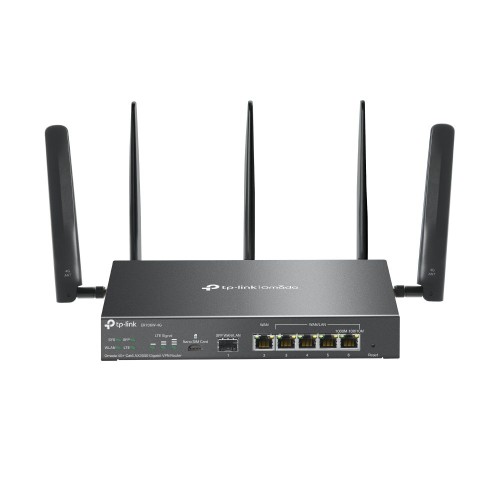

TP-Link ER706W-4G Omada 4G+ Cat6 AX3000 Gigabit VPN Router ER706W-4G

4G





Network Type

LTE Band of EU:• 4G LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32 (2100/1800/850/2600/900/800/700/1450 MHz)• 4G LTE-TDD: B38/B40/B41 (2600/2300/2500 MHz)• 3G DC-HSDPA/HSPA+/HSDPA/HSUPA/WCDMA: B1/B3/B5/B8(2100/1800/850/900 MHz)Carrier Aggregation:B1+B1/B3/B5/B7/B8/B20/B28/B38/B40/B41B3+B3/B5/B7/B8/B20/B28/B38/B40/B41B5+B5/B7/B38/B40/B41B7+B7/B8/B20/B28/B32B8+B32/B38/B40/B41B20+B32/B38/B40B28+B32/B38/B40/B41B38+B38B40+B40B41+B41



SIM Type

1× Nano SIM Card



Frequency

• Downlink: 300 Mbps;• Uplink: 50 Mbps







BIZTONSÁG





Hozzáférés-vezérlés

Source/Destination IP Based Access Control



Szűrés

• Web Group Filtering†• URL Filtering• Web Security†



ARP-s támadás elleni védelem

• Sending GARP Packets• ARP Scanning†• IP-MAC Binding



Hálózati támadások elleni védelem

• TCP/UDP/ICMP Flood Defense• Block TCP Scan (Stealth FIN/Xmas/Null)• Block Ping from WAN







HARDVER JELLEMZŐK





Csatlakozások

• 1 Gigabit SFP WAN/LAN Port• 1 Gigabit WAN Port• 4 Gigabit LAN/WAN Ports



Hálózati összeköttetés

• 10BASE-T: UTP category 3, 4, 5 cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)• 100BASE-TX: UTP category 5, 5e cable (Max 100 m) EIA/TIA-568 100? STP (Max 100 m)• 1000BASE-T: UTP category 5, 5e, 6 cable (Max 100 m)



Gomb

Reset Button



Hálózati tápegység

12VDC / 2A Power Adapter



Wi-Fi Frequency & Signal Rate

• 2.4 GHz: 574 Mbps• 5 GHz: 2402 Mbps (HE160)



Flash

128 MB NAND



DRAM

512 MB DDR4



LED

SYS, WLAN, SFP, LTE Signal, WAN (1000M Link/Act, 100/10M Link/Act), WAN/LAN (1000M Link/Act, 100/10M Link/Act)



Méretek (Sz x Mé x Ma)

8.9 × 5.2 × 1.4 in (226 × 131 × 35 mm) (Antenna dimensions are notincluded)



Antenna

• Wi-Fi: Three 5GHz 5.5dBi & 2.4GHz 4.5dBi dual-band detachable antennas• LTE: Two 4.0dBi omnidirectional detachable antennas



Felszerelés

Desktop/Wall-Mounting



Max. áramfelvétel

EU: 17.3W







MŰKÖDÉSI JELLEMZŐK





GRE

• Unencrypted: 545.3Mbps• Encrypted: 282.6Mbps



WireGuard VPN

387.7Mbps



Egyidejű munkamenet

150,000



New Sessions /Second

5,100



NAT (Static IP)

947.1Mbps / 940.1Mbps



NAT(DHCP)

949.2Mbps / 941.1Mbps



NAT(PPPoE)

942.6Mbps / 941.1Mbps



NAT (L2TP)

875.4Mbps / 892.0Mbps



NAT (PPTP)

881.2Mbps / 895.8Mbps



IPsec VPN Throughput

• ESP-SHA1-AES256: 652.2Mbps• ESP-SHA256-AES256: 654.4Mbps• ESP-SHA384-AES256: 646.5Mbps• ESP-SHA512-AES256: 670.5 Mbps



OpenVPN

115.5Mbps



L2TP VPN Throughput

• Unencrypted: 990.0Mbps• Encrypted: 475.0Mbps



PPTP VPN Throughput

• Unencrypted: 1177.9Mbps• Encrypted: 177.4Mbps



SSL VPN Throughput

122.5Mbps



66 Byte Packet forwarding rate

1,453,489 pps / 1,453,488 pps



1,518 Byte Packet forwarding rate

81274 pps / 91275 pps







VEZETÉK NÉLKÜLI JELLEMZŐK





További funkciók

• Seamless Roaming• Mesh (with EAP that supports Mesh)• OFDMA• Beamforming• MU-MIMO• Rate Limit: Based on SSID/Client• Airtime Fairness• Wireless Encryption: WPA/WPA2/WPA3 Personal, WPA/WPA2/WPA3 Enterprise• Multiple SSIDs: 16 in total (8 per radio)



Vendéghálózat

Support







ALAPFUNKCIÓK





WAN kapcsolati típus

• Static IP• Dynamic IP• PPPoE (supports MRU Configuration)• PPTP• L2TP



MAC klónozása

Modify WAN Address



DHCP

• DHCP Server• DHCPv6 PD Server (only in Standalone Mode)• DHCP Options Customization• DHCP Address Reservation• Multi-IP Interfaces• Multi-Net DHCP



SMS

Receive / Send SMS



IPv6

StaticIP / SLAAC / DHCPv6 / PPPoE / 6to4Tunnel / PassThrough / Non-Address mode



VLAN

802.1Q VLAN



IPTV

IGMP v2/v3 Proxy, Custom Mode, Bridge Mode







HALADÓ FUNKCIÓK





ACL

IP/Port/Protocol/Domain Name Filtering



Advanced Routing

• Static Routing• Policy Routing• RIP†• OSPF†



Sávszélesség-szabályozás

IP-Based Bandwidth Control



Load Balance

• Intelligent Load Balance• Application Optimized Routing• Link Backup(Timing, Failover)• Online Detection



NAT

• One-to-One NAT• Multi-Net NAT• Virtual Server• Port Triggering†• NAT-DMZ• FTP/H.323/SIP/IPSec/PPTP ALG• UPnP



Session Limit

IP-Based Session Limit







VPN





GRE

Only in Standalone Mode



SSL VPN

50 Tunnels



IPsec VPN

• 100 IPSec VPN Tunnels• LAN-to-LAN, Client-to-LAN• Main, Aggressive Negotiation Mode• DES, 3DES, AES128, AES192, AES256 Encryption Algorithm• IPsec Failover• IKE v1/v2• MD5, SHA1, SHA2-384 and SHA2-512 Authentication Algorithm• NAT Traversal (NAT-T)• Dead Peer Detection (DPD)• Perfect Forward Secrecy (PFS)



PPTP VPN

• PPTP VPN Server• PPTP VPN Client (10)?• 50 Tunnels• PPTP with MPPE Encryption



L2TP VPN

• L2TP VPN Server• L2TP VPN Client (10)?• 50 Tunnels• L2TP over IPSec



OpenVPN

• OpenVPN Server• OpenVPN Client (5)?• 55 OpenVPN Tunnels• "Certificate + Account" Mode• Full Mode







HITELESÍTÉS





Webes hitelesítés

• No Authentication• Simple Password§• Hotspot (Local User / Voucher§ / SMS§ / Radius§)• External Radius Sever• External Portal Sever§• LDAP







VEZÉRLÉS





Omada App

Yes.



Centralized Management

• Omada Cloud-Based Controller• Omada Hardware Controller (OC300)• Omada Hardware Controller (OC200)• Omada Software Controller



Cloud Access

Yes.



Szolgáltatás

Dynamic DNS (Dyndns, No-IP, Peanuthull, Comexe, DDNS Customization)



Kezelés

• Web Management Interface• Remote Management• Export & Import Configuration• SNMP v1/v2c/v3• Diagnostics (Ping & Traceroute)†• NTP Synchronize†• Port Mirroring• CLI (only in Standalone Mode)• Syslog Support



Zero-Touch Provisioning

Yes. Require the use of Omada Cloud-Based Controller.



Management Features

• Automatic Device Discovery• Intelligent Network Monitoring• Abnormal Event Warnings• Unified Configuration• Reboot Schedule• Captive Portal Configuration







EGYÉB JELLEMZŐK





Tanúsítványok

CE, FCC, RoHS



Csomagolás tartalma

• ER706W-4G• Power Adapter• Quick Installation Guide



Rendszerkövetelmény

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7/8/8.1/10/11• MAC OS, NetWare, UNIX or Linux



Környezet

• Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)• Storage Temperature: -40 °C to 70 °C (-40 °F to 158 °F)• Operating Humidity: 10% to 90% non-condensing
