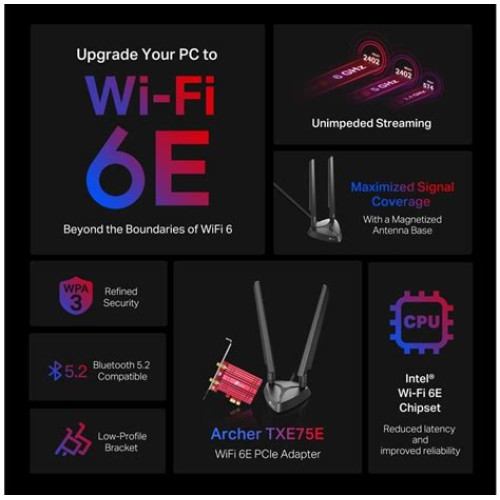

TP-LINK Archer TXE75E AXE5400 Wi-Fi 6E Bluetooth 5.2 PCIe Adapter ArcherTXE75E ArcherTXE75E

HARDVER JELLEMZŐK









Dimensions

3.7 × 4.8 × 0.8 in (95.2 ×120.8 ×21.5 mm)





Antenna típusa

2× High-Gain Tri-Band Antennas















VEZETÉK NÉLKÜLI JELLEMZŐK









Wi-Fi sztenderd

IEEE 802.11a/b/g/n/ac/ax





WLAN Signal Rate

6 GHz:

11ax: Up tp 2402Mbps

5 GHz:

11ax: Up to 2402 Mbps(dynamic)

11ac: Up to 1732 Mbps(dynamic)

11n: Up to 300 Mbps(dynamic)

11a: Up to 54 Mbps(dynamic)

2.4 GHz:

11ax: Up to 574 Mbps(dynamic)

11n: Up to 400 Mbps(dynamic)

11g: Up to 54 Mbps(dynamic)

11b: Up to 11 Mbps(dynamic)





WLAN Reception Sensitivity

6 GHz:

11ax HE160 MCS0:-86

11ax HE160 MCS11:-56

5 GHz:

11ax HE80 MCS0: -90 dBm

11ax HE80 MCS11: -59 dBm

11a 54Mbps: -77 dBm

11ac VHT80 MCS0: -92dBm

11ac VHT80 MCS9: -64dBm

2.4 GHz:

11ax HE40 MCS0: -91 dBm

11ax HE40 MCS11: -60 dBm

11g 54Mbps: -76 dBm

11n HT40 MCS7: -72dBm





WLAN Transmit Power

5 GHz: 20dBm(FCC) /15dBm(CE) (EIRP)

2.4 GHz: 20dBm(FCC) / 16dBm(CE) (EIRP)

6 GHz: 12dBm(FCC)





WLAN Modes

Infrastructure mode





Vezeték nélküli biztonság

WEP, WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK















EGYÉB JELLEMZŐK









Tanúsítványok

FCC, CE, RoHS





Csomagolás tartalma

Archer TXE75E

Magnetized Antenna Base with 1m RF Cable

2× High-Gain Antennas

Low-Profile Bracket

Bluetooth Header Cable

Quick Installation Guide

Resource CD





Rendszerkövetelmény

Supported operating systems include Windows 10, 11(64-bit).

Currently 6 GHz Band only supported on Windows 11.





Környezet

Operating Temperature: 0?~40? (32? ~104?)

Operating Humidity: 10%~90% non-condensing

Storage Humidity: 5%~90% non-condensing
