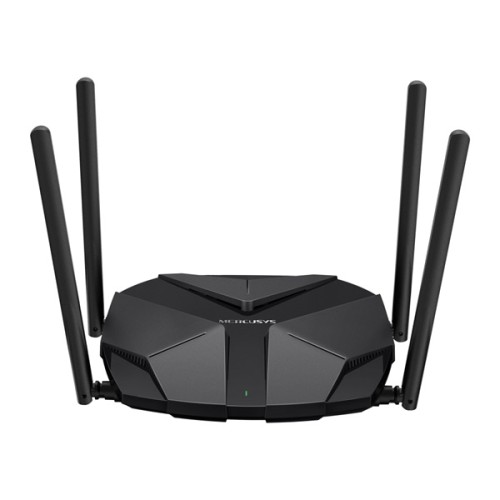

MERCUSYS Wireless Router Dual Band AX3000 1xWAN(2500Mbps) + 3xLAN(1000Mbps), MR85X MR85X

Wi-Fi Class


AX3000


Wi-Fi (2.4 GHz)


574Mbps


Wi-Fi ( 5 GHz)


2402Mbps


Wireless Standards


802.11ax/ac/a/b/g/n


Max Channel Width


160MHz


Reception Sensitivity


5G:
 11a 6Mbps: -95dBm
 11a 54Mbps:-76.5dBm
 11n HT20 MCS7:-76dBm
 11n HT40 MCS7:-73dBm
 11ac VHT20 MCS8:-71.5dBm
 11ac VHT40 MCS9:-67dBm
 11ac VHT80 MCS9:-63.5dBm
 11ax HE20 MCS11:-64.5dBm
 11ax HE40 MCS11:-63dBm
 11ax HE80 MCS11:-58.5dBm
 11ax HE160 MCS11:-56dBm

2.4G:
 11g 6Mbps : -97dBm
 11g 54Mbps: -79dBm
 11n HT20 MCS7:-78dBm
 11n HT40 MCS7:-75dBm
 11ax HE20 MCS11:-66.5dBm
 11ax HE40 MCS11:-65.5dBm



Max Wi-Fi Modulation


1024 QAM


Wireless Security


WPA/WPA2/WPA3


Wireless Functions


Guest Network
Smart Connect
Wireless Schedule
WPS
AP Isolation
Airtime Fairness




Wireless



Dimensions


209 × 171.7 × 42.4 mm
(8.2 × 6.8 × 1.7 in)


Interfaces


1× 2.5G WAN
3× GE LAN


Antenna


2× 5G External Antennas(5dBi)
1× 2.4G & 5G External Antenna(2.4G: 3dBi, 5G:5dBi)
1× 2.4G External Antenna(5dBi)


Button


1× WPS Button
1× Reset Button


Installation


Desktop
Wall-mount


LED


1× SYS


Retail Package Dimension


359 × 274 × 60mm


Units per Carton


10


Carton Dimension


560 × 370 × 310mm


IPTV


IGMP Proxy
IGMP Snooping
Bridge
Tag VLAN


Power


Input:100~240V, 50/60Hz
Output:  12V/1.5A




Hardware



Operation Mode


Router/AP mode


WAN Mode


Dynamic IP
Static IP
PPPoE
PPTP
L2TP


NAT Forwarding


Port Forwarding
Port Triggering
DMZ
UPnP


Protocols


IPv4
IPv6


Guest Network


2.4G Guest Network
5G Guest Network


Parental Controls


Profile Settings
Time Control
Pause the Internet
Website Filtering


DHCP


Address Reservation
DHCP Client List
Server


DDNS


MERCUSYS
NO-IP
DynDNS


VPN Server


OpenVPN
PPTP
L2TP/IPSec
WireGuard


VPN Client


OpenVPN
PPTP
L2TP/IPSec
WireGuard


Easymesh


Easymesh Compatible


QoS


Time Settings
Priority Control


Security


SPI Firewall
Access Control
IP & MAC Binding


Kill Switch


Support


ISP Feature


CWMP
ISP Preset(Agile Config)
Superadmin


System


Firmware Upgrade
Backup and Restore
Administration
System Log
Time & Language Settings
Reboot


Diagnostics


Ping
Traceroute


LED Management


LED Control
Night Mode


Device Management


MERCUSYS APP
Webpage


Cloud


MERCUSYS ID


Language


Bulgarian
Czech
Danish
German
English
Spanish
Finnish
French
Hungarian
Italian
Japanese
Korean
Dutch
Norwegian
Polish
Portuguese
Portuguese - Brazil
Romanian
Russian
Slovak
Swedish
Turkish
Ukrainian
Vietnamese
Chinese - Taiwan


Advanced Features


OFDMA
MU-MIMO
BSS Color
Beamforming




Software



Network Services Enabled by Default

Web Server Manage and configure device through web (HTTP/HTTPS) • Port: 80/443   Protocol: TCP
DNS DNS • Port: 53   Protocol: TCP & UDP

DHCP Server IP address assignment (DHCP) • Port: 67   Protocol: UDP

App management Manage and configure device through app • Port: 20001   Protocol: TCP • Port: 30001   Protocol: TCP • Port: 20002   Protocol: UDP

Network Services Enabled by Default


Web Server

Manage and configure device through web (HTTP/HTTPS)

• Port: 80/443; Protocol: TCP



DHCP Server

IP address assignment (DHCP)

• Port: 67; Protocol: UDP



DNS

DNS

• Port: 53; Protocol: TCP & UDP



App management

Manage and configure device through app

• Port: 20001; Protocol: TCP

• Port: 20002; Protocol: UDP




Package Contents


• AX3000 Wi-Fi 6 Router MR85X
• Power Adapter
• Quick Installation Guide
• RJ45 Ethernet Cable


Environment


• Operating Temperature: 0°C~40°C (32°F~104°F)
• Operating Humidity: 10%~90% Non-Condensing
• Storage Humidity: 5%~90% Non-Condensing
