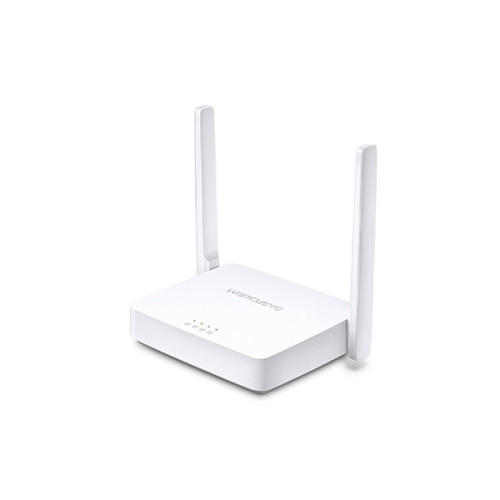

Mercusys MW301R WiFi router

Garancia: 3 Év







Dimensions (W X D X H)



114x94x26 mm







Protocols



IPv4, IPv6







External Power Supply

5VDC/0.6A





Antenna Type

2 x 5dBi fixed omni directional antennas





Signal Rate



11n: Up to 300Mbps (Dynamic)



11g: Up to 54Mbps (Dynamic)



11b: Up to 11Mbps (Dynamic)







Button

RESET





Wireless Standards

IEEE 802.11n, IEEE 802.11g, IEEE 802.11b





Frequency

2.4 - 2.4835GHz





Reception Sensitivity



270M: -70dBm@10% PER



130M: -74dBm@10% PER



108M: -77dBm@10% PER



54M: -76dBm@10% PER



11M: -90dBm@8% PER



6M: -92dBm@10% PER



1M: -97dBm@8% PER







Interfaces



2 10/100Mbps LAN ports



1 10/100Mbps WAN port







Certifications

CE, ROHS





Package Contents



300Mbps Wireless N Router



MW301R



Power adapter



Quick Installation Guide



Ethernet cable







Environment



Operating temperature: 0°C ~ 40°C (32°F ~ 104°F)



Storage temperature: -40°C ~ 70°C (-40°F ~ 158°F)



Operating humidity: 10% ~ 90%, non-condensing



Storage humidity: 5% ~ 90%, non-condensing







Transmission Power

<20dBm





Wireless Security

64/128/152-bit WEP / WPA / WPA2,WPA-PSK / WPA2-PSK





Wireless Functions

WDS bridge





WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP





Management



Parental Control



Access control



Local management



Remote management







DHCP

Server





Port Forwarding

Virtual server, UPnP, DMZ





Dynamic DNS

DynDNS?NO-IP





Firewall Security

IP and MAC address binding





Guest Network

2.4GHz guest network
