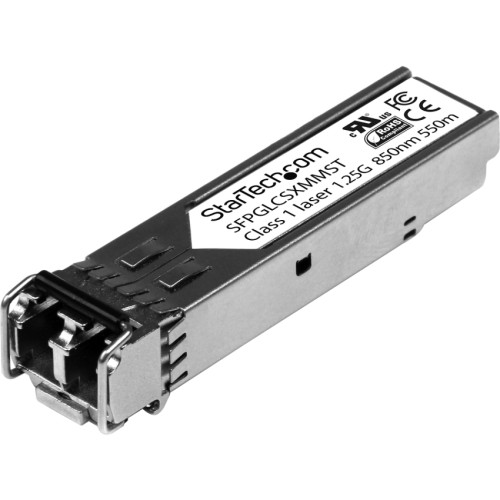

STARTECH GB FIBER SFP TRANSCEIVER MM LC SFPGLCSXMMST
A kép csak illusztráció!
The SFPGLCSXMMST Cisco® Compatible Gigabit Fiber SFP Transceiver Module MM LC - 550m (1804 ft) is built to comply with MSA (Multi-Sourcing Agreement) standards to offer a cost-effective way to add, replace or upgrade a Multimode LC port on your Gigabit fiber networking equipment or fiber media converter.
Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco GLC-SX-MM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Hardware
Industry Standards
IEEE 802.3z 1000BASE-SX
WDM
No
Performance
Compatible Networks
1000 Mbps (1 Gbps)
DDM
No
Fiber Operating Mode
Half/Full-Duplex
Fiber Type
Multi Mode
Max Transfer Distance
550 m (1804 ft)
Maximum Data Transfer Rate
1.25 Gbps
Wavelength
850nm
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note
For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements
MSA or Cisco compliant SFP port
Environmental
Humidity
30~70% RH
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 85°F)
Physical Characteristics
Product Height
0.4 in [10 mm]
Product Length
2.4 in [60 mm]
Product Weight
0.6 oz [16 g]
Product Width
0.5 in [12 mm]
Packaging Information
Shipping (Package) Weight
0.1 lb [0 kg]
What's in the Box
Included in Package
1 - 1.25 Gbps Multimode LC SFP
Supporting data rates up to 1.25 Gbps, this LC Mini-GBIC module can be installed into any fiber networking device with an MSA or Cisco compliant SFP port. Delivering both convenience and scalability, this fiber transceiver is fully hot-pluggable, which enables you to install the module without interrupting network traffic or requiring a device reboot.
This 850nm multi-mode SFP module is compatible with the Cisco GLC-SX-MM transceiver. Also a perfect accessory for the StarTech.com PCI Express Open SFP NIC (PEX1000SFP2), or Gigabit POE Open SFP Media Converter (ET1110PSE) products.
Backed by a StarTech.com lifetime warranty and free lifetime technical support.
Hardware
Industry Standards
IEEE 802.3z 1000BASE-SX
WDM
No
Performance
Compatible Networks
1000 Mbps (1 Gbps)
DDM
No
Fiber Operating Mode
Half/Full-Duplex
Fiber Type
Multi Mode
Max Transfer Distance
550 m (1804 ft)
Maximum Data Transfer Rate
1.25 Gbps
Wavelength
850nm
Connector(s)
Local Unit Connectors
1 - Fiber Optic LC Duplex Female
Special Notes / Requirements
Note
For use in Gigabit fiber networking equipment and media converters
System and Cable Requirements
MSA or Cisco compliant SFP port
Environmental
Humidity
30~70% RH
Operating Temperature
0°C to 70°C (32°F to 158°F)
Storage Temperature
-40°C to 85°C (-40°F to 85°F)
Physical Characteristics
Product Height
0.4 in [10 mm]
Product Length
2.4 in [60 mm]
Product Weight
0.6 oz [16 g]
Product Width
0.5 in [12 mm]
Packaging Information
Shipping (Package) Weight
0.1 lb [0 kg]
What's in the Box
Included in Package
1 - 1.25 Gbps Multimode LC SFP
