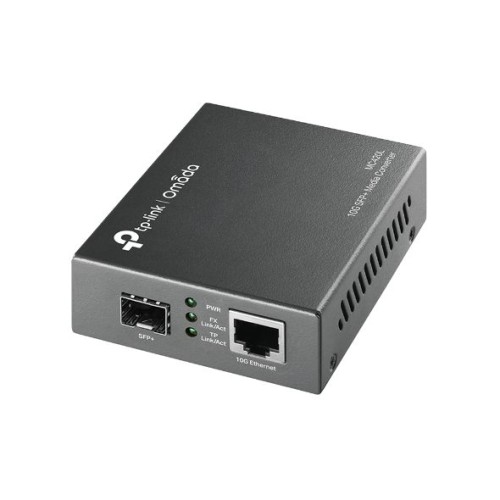

TP-LINK Optikai Media Konverter 10G Multi-Gigabit SFP, MC420L MC420L

MEDIA CONVERTER & MODULE


Standards and Protocols
IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x

Basic Function
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode• Maximum transmission distance depends on the inserting SFP module

Interface
• 1× SFP+ port• 1× 1G/2.5G/5G/10Gbps RJ45 port

Wave Length
Depends on the used SFP module

Network Media 10GBASE-R
Multi-mode/Single-mode SFP+ module

Network Media 10GBASE-T
1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)

Dimensions ( W x D x H )
3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power Supply
External Power Adapter

Max. Power Consumption
4.12W

LED
PWR, Link/Act

Safety & Emission
UL, RoHS

Package Content
• MC420L• Power Adapter• Installation Guide

Environment
• Operating Temperature: 0?~50? (32?~122?)• Storage Temperature: -40?~70? (-40?~158?)• Operating Humidity: 10%RH~90%RH Non-condensing• Storage Humidity: 5%RH~90%RH Non-condensing
