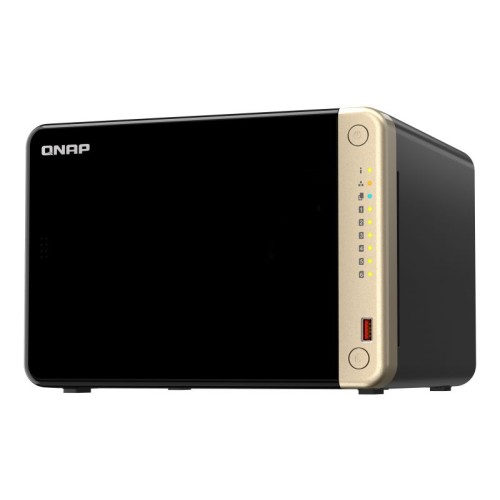

QNAP NAS TS-664-8G (8GB) (6xHDD + 2xM.2 SSD) TS-664-8G

CPU

Intel® Celeron® N5095 4-core/4-thread processor, burst up to 2.9 GHz





CPU Architecture

64-bit x86





Graphic Processors

Intel® UHD Graphics





Floating Point Unit

Yes





Encryption Engine

 (AES-NI)





Hardware-accelerated Transcoding

Yes





System Memory

8 GB RAM





Maximum Memory

8GB





Flash Memory

4GB (Dual boot OS protection)





Drive Bay

6 x 3.5-inch SATA 6Gb/s

The system is shipped without HDD.

For the HDD compatibility list, please visit https://www.qnap.com/compatibility/







Drive Compatibility

3.5-inch SATA hard disk drives

2.5-inch SATA solid state drives





Hot-swappable

Yes





M.2 Slot

2 x M.2 2280 PCIe Gen 3 x1

Kompatibilis a PCIe Gen 3-as és Gen 4-es NVMe SSD-kkel. Kérjük, ellenőrizd a https://www.qnap.com/compatibility/ oldalt a kompatibilitásért.







SSD Cache Acceleration Support

Yes





2.5 Gigabit Ethernet Port (2.5G/1G/100M)

2 (2.5G/1G/100M/10M)





5 Gigabit Ethernet Port (5G/2.5G/1G/100M)

Optional via PCIe expansion card





10 Gigabit Ethernet Port

Optional via PCIe expansion card





Wake on LAN (WOL)

Yes





Jumbo Frame

Yes





PCIe Slot

1

Slot 1: PCIe Gen 3 x2

Card dimensions for PCIe slot:190 x 68.9x 18.76 mm / 7.48 x 2.71 x 0.74 inches.







USB 2.0 port

2





USB 3.2 Gen 2 (10Gbps) Port

2 x Type-A





IR Sensor

 (Optional QNAP RM-IR004 remote control)





HDMI™ Output

1, HDMI™ 2.1 (up to 4096 x 2160 @ 60Hz)





Form Factor

Tower





LED Indicators

Power/Status, LAN, USB, HDD1-6





Buttons

Power, USB copy, Reset





Dimensions (HxWxD)

165 × 235 × 226,5 mm

Dimensions do not include foot pad (foot pad may be up to 30mm / 1.18 inches high depending on model)







Weight (Net)

2.94 kg





Weight (Gross)

5.1 kg





Operating Temperature

0 ~ 40°C (32°F ~ 104°F)





Storage Temperature

-20 - 70°C (-4°F - 158°F)





Relative Humidity

5-95% RH non-condensing, wet bulb: 27°C (80.6°F)





Power Supply Unit

120W adapter, 100-240V





Power Consumption: HDD Sleep Mode

23.22 W





Power Consumption: Operating Mode, Typical

44.02 W

Tested with drives fully populated.







Fan

2 x 90mm, 12VDC





System Warning

Buzzer





Kensington Security Slot

Yes





Standard Warranty

3





Max. Number of Concurrent Connections (CIFS) - with Max. Memory

1,500
