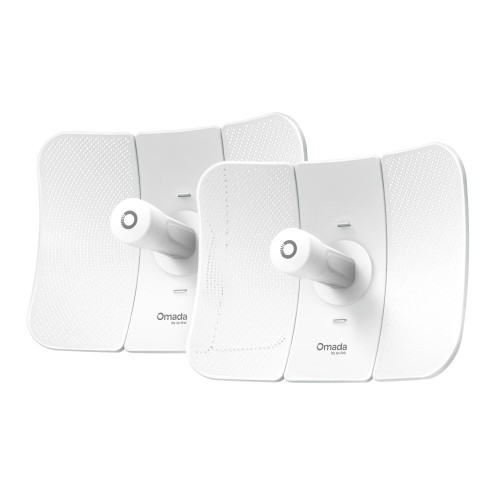

TP-Link Beam Bridge 5 UR KIT Omada 5GHz 867Mbps Ultra-Range Indoor/Outdoor Wireless Bridge BEAM BRIDGE 5 UR KIT

Garancia: 5 Év







HARDWARE FEATURES





Interface

1 x 10M/100M/1000Mbps Gigabit Ethernet Port (RJ45); PoE In



Button

1 × Reset Button1 × System Mode Selection Button



DIP Switch

Role Switch



Power Supply

802.3af PoE (1,2pins; 3,6pins)24V or 48V Passive PoE (+4,5pins; -7,8pins) (Passive PoE Adapter Included)



Max. Power Consumption

15.8W



Dimensions ( W x D x H )

14.4 × 11.0 × 8.1 in (366 × 280 × 207 mm)



Antenna

External 2×2 Dual-Polarized Directional MIMO Antennas5 GHz: 23 dBi



Antenna Beamwidth

Horizontal: 9°, Vertical: 7°



Weatherproof Enclosure

IP65



Bandwidth

5 GHz: 20 MHz/40 MHz/80 MHz



Mounting

Pole Mounting (Kits Included)







WIRELESS FEATURES





PtP

Yes



Transmission Distance

15 km (9.3 mi)



Wireless Standards

IEEE 802.11 a/n/ac



Frequency

5 GHz



Signal Rate

5 GHz: Up to 867 Mbps



Wireless Functions

• MU-MIMO: 5G 2x2 MU-MIMO DL• Maximum number of associated STAs: 8• Speed Test• Channel Optimization• Antenna Alignment• ACS (Automatic Channel Selection)• Rate Limit• Guest Network



Wireless Security

• VLAN• Rogue AP Detection• Maximum number of MAC Filter: 4,000• Wireless Encryption



Transmission Power

• CE:<23 dBm (5 GHz, U-NII-1/2A, ERIP)<30 dBm (5 GHz, U-NII-1/2C, ERIP)• FCC:<27 dBm (5 GHz, U-NII-1)<27 dBm (5 GHz, U-NII-3)







Management Features





Omada App

Yes



Restore & Backup

Yes



Firmware update via Web

Yes



NTP

Yes



Centralized Management

• Omada Central (Cloud-Based)• Omada Hardware Controller• Omada Software Controller



Cloud Access

Yes. Require the use of an Omada Controller.



Email Alerts

Yes



LED ON/OFF Control

Yes



SNMP

Yes



SSH

Yes



Web-based Management

Yes



Zero-Touch Provisioning

Yes







OTHERS





Certification

CE, FCC, RoHS



Package Content

• Beam Bridge 5 UR KIT• Installation Guide• Mounting Kit• Passive PoE Adapter• Power Cord



Lightning Protection

Ethernet Ports: ±6 kV



Environment

• Operating Temperature: -40 °C–70 °C (-40 °F–158 °F);• Storage Temperature: -40 °C–70 °C (-40 °F–158 °F);• Operating Humidity: 10%–90% non-condensing;• Storage Humidity: 5%–90% non-condensing



Weight

1.1 kg (2.43 lb)
