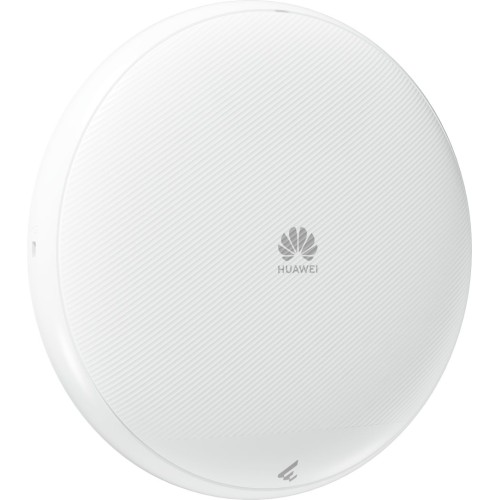

Huawei eKit Wireless TriBand Access Point White 50087291

First supported version

V600R024C00





Installation Type

Wall,Ceiling,T-Rail





Dimensions without packaging (H x W x D) [mm(in.)]

Diameter x depth: 220 mm x 45 mm (8.66 in. x 1.77 in.)





Dimensions with packaging (H x W x D) [mm(in.)]

72 mm x 260 mm x 255 mm (2.83 in. x 10.24 in. x 10.04 in.)





Weight without packaging [kg(lb)]

0.745 kg (1.64 lb)





Weight with packaging [kg(lb)]

1.230 kg (2.71 lb)





CPU

4-core, 1.0 GHz





Memory

DDR4 512 MB





Console port

Bluetooth console





Power supply mode

PoE,DC power adapter





Storage

NAND Flash 512 MB





Rated input voltage [V]

12 V





Input voltage range [V]

DC: 12 V ± 10% PoE: 802.3at/af





Service port surge protection

PoE port: Differential mode (48 V-RTN): 0.5 kV (1.2/50 us, 42 ohms), criterion B Common mode (8 wires to ground): 4 kV (1.2/50 us, 42 ohms), criterion B





Maximum number of physical ports on the entire device

5GE (RJ45) x 1, 100M/1000M/2500M/5000M auto-sensing GE (RJ45) x 1, 10M/100M/1000M auto-sensing





Long-term operating temperature [°C(°F)]

–10°C to +50°C (14°F to 122°F) (From 1800 m to 5000 m [5905.51 ft. to 16404.20 ft.], the maximum temperature of the device decreases by 1°C [1.8°F] for every 300 m [984.25 ft.] increase in altitude.)





Storage temperature [°C(°F)]

–40°C to +70°C (–40°F to +158°F)





Long-term operating relative humidity [RH]

5% RH to 95% RH (non-condensing)





Long-term operating altitude [m(ft.)]

–60 m to +5000 m (–196.85 ft to +16404.20 ft)





Atmospheric pressure [kPa]

53kPa - 106kPa ETSI 300 019-2-3





Ground

Floating ground





USB

USB 3.0 is unavailable currently and will be supported through software upgrade in the future.





BLE

BLE5.2





Radio number

3





MIMO spatial streams

Radio 0 (2.4 GHz): 2x2 Radio 1 (5 GHz): 2x2 Radio 2 (6 GHz): 4x4





Wi-Fi standard

2.4 GHz: 802.11b/g/n/ax/be 5 GHz: 802.11a/n/ac/ac Wave 2/ax/be 6 GHz: 802.11a/ax/be





Radio interface

Built-in smart antennas





Antenna gain

2.4 GHz: 4 dBi/chain (peak gain) 2 dBi (combined gain) 5 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) 6 GHz: 5 dBi/chain (peak gain) 3 dBi (combined gain) BT: 4 dBi





Maximum transmit power

2.4 GHz: 20 dBm/chain 23 dBm (combined power) 5 GHz (2x2): 20 dBm/chain 23 dBm (combined power) 6 GHz (4x4): 20 dBm/chain 26 dBm (combined power) BLE: < 10 dBm





3G/LTE filte (ACC)

Supported





MTBF [year]

110.878





MTTR [hour]

2





Maximum power consumption [W]

21.1 W (excluding USB)





Maximum heat dissipation [BTU/hour]

66





802.3bt power supply description

The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.





802.3at power supply description

The power supply mode is negotiated to 802.3at. When the 5 W USB port is used, the maximum transmit power of radios 0, 1, and 2 decreases by 3 dBm. Other functions are not restricted.





802.3af power supply description

The power supply mode is negotiated to 802.3af. Wi-Fi service: A maximum of 2.4 GHz (2x2) + 5 GHz (2x2) is supported. The USB is unavailable. Other functions are not restricted.





DC power supply description

No function is limited.





Operating frequency band

2.4GHz,5GHz,6GHz





Frequency stability [ppm]

+/-20
