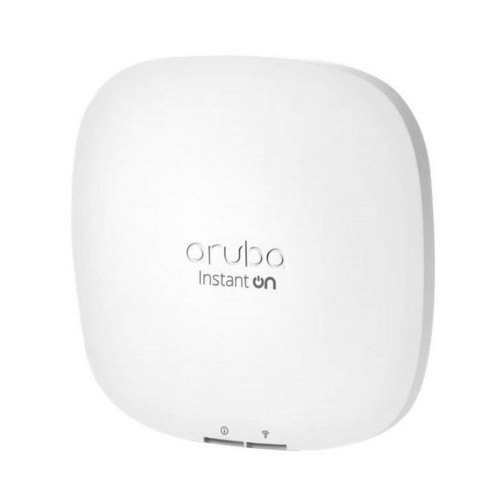

HP Aruba Instant On AP22 Access Point RW 2x2 White R4W02A

Product

 Instant On AP22





Part Number

R4W01A

R4W02A

R4W03A

R4W04A

R4W05A

R6R77A

R6R78A

R6R79A

R6M49A

R6M50A

R6M51A

S0G19A

S0G23A





Description

Indoor, dual radio, 5 GHz 802.11ax 2x2 MIMO and 2.4 GHz 802.11ax 2x2 MIMO





Product Type

Access Point





Ports

1x GE, with PoE-in support (802.3af)





Number of Radios

2





Wi-Fi Alliance Certification

Wi-Fi Alliance certified (WFA) 802.11ax with (Wi-Fi 6), WPA2, WPA3





Performance







   Memory and Processor

N/A





   MAC Address Table Size

N/A





Electrical Characteristics







   Maximum Heat Dissipation

N/A





   Maximum Power Rating

10.1W (PoE), 8.8W (DC)





   Power Inputs

Uplink Gigabit Ethernet port, with PoE-in support (802.3af)

DC power connector (12V)





   Antenna Connector

N/A





   Antenna

Down-tilt omni-directional antennas for 2x2 MIMO with peak antenna gain of 4.3dBi in 2.4GHz and 5.6dBi in 5GHz (of the effective, combined pattern for both antennas in each band).





   Number of Internal Antennas

N/A





   Number of External Antennas

N/A





   Notes

N/A





Physical Characteristics







   Dimensions

160 mm (W) x 160 mm (D) x 37 mm (H)

6.29” (W) x 6.29” (D) x 1.46” (H)





   Weight

500 g/17.64 oz





Additional Details







   MIMO

2x2





   Spatial Streams

N/A





   Notes

N/A
