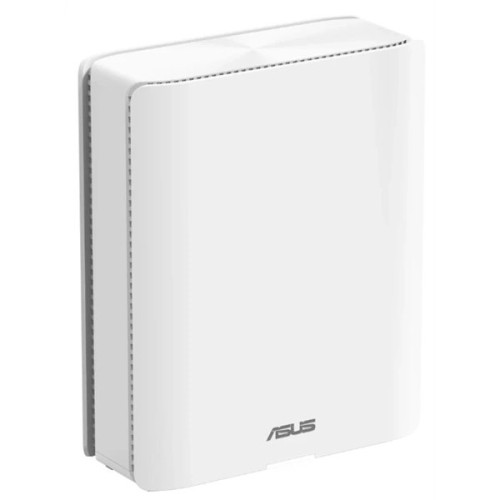

ASUS Wireless ZenWifi Mesh Networking system BE25000, BQ16 (W-1-PK) BQ16 (W-1-PK)

Model
ASUS ZenWiFi BQ16
Model Name
BQ16 (W-3-PK)BQ16 (W-2-PK)BQ16 (W-1-PK)
Network Standard
IPv6IPv4WiFi 7 (802.11be)WiFi 6E (802.11ax)WiFi 6 (802.11ax)WiFi 5 (802.11ac)WiFi 4 (802.11n)IEEE 802.11gIEEE 802.11bIEEE 802.11a
Product Segment
BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (6GHz): up to 11529 MbpsWiFi 7 (802.11be) (5GHz-2): up to 5764 MbpsWiFi 7 (802.11be) (5GHz-1): up to 5764 MbpsWiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps
Antenna
Internal antenna x 12
Transmit / Receive
6GHz 4x45GHz-2 4x45GHz-1 4x42.4GHz 4x4
Memory
RAM 2GB , Flash 256MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz / 5 GHz / 6 GHz, 6 GHz5 GHz-25 GHz-12.4 GHz
Operating Mode
Access Point ModeAiMesh Node ModeWireless Router Mode
I/O Ports
10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0
Buttons
Reset/ WPS/ Rocker Switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 19.5V with max. 3.5A currentDC Output : 12V with max. 5A current
Package Content
ZenWiFi BQ16RJ-45 cablePower adapterWarranty cardQuick start guide
Product Weight (g)
1341g
Product Dimensions
214*174.2*72 mm
AiMesh
AiMesh, • Primary AiMesh Router, • AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Reward, Parental Control - Safe Browsing, Customized Internet Schedule, • Maximum Parental Control Profile : 64, • Maximum Parental Control Content Filter Rule : 64
Router APP
APP: ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8, Guest Network Connection Time Limit, Open system, WPA/WPA2-Personal/WPA3-Personal
Security
AiProtection, VPN, WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise , WPA2 Personal, WPA Personal, WPA Enterprise , WPS support, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64
AiProtection
AiProtection Pro, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking
VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard, VPN Fusion
Traffic Control
Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History
WAN
• Static IP• Automatic IP• L2TP• PPTP• PPPoEInternet Connection Type, Dual WAN, 4G / 5G Auto Mobile Tethering, Port Forwarding, • Maximum Port Forwarding Rule : 64, Port Triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS
LAN
DHCP Server, IGMP Snooping, IPTV, LAN Link Aggregation, Manually Assign IP Address, Wake on LAN (WOL)
Wireless
MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, Universal Beamforming, Explicit Beamforming
USB application
4G / 5G Auto Mobile Tethering, HDD Hibernation, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server
Administration
Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
