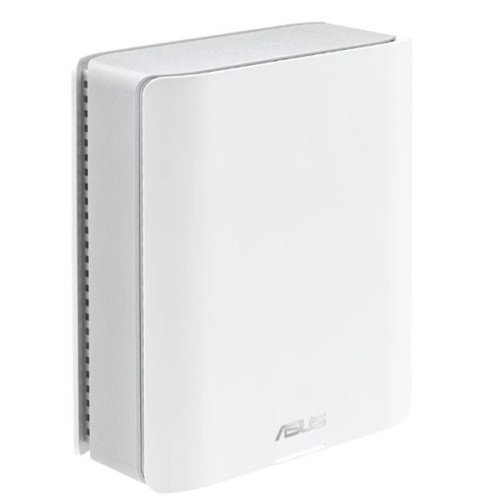

ASUS Wireless ZenWifi Mesh Networking system BE18000, BT10(W-3-PK) BT10(W-3-PK)

Model
ASUS ZenWiFi BT10
Model Name
BT10(W-1-PK)BT10(W-2-PK)BT10(W-3-PK)
Network Standard
IEEE 802.11aIEEE 802.11bIEEE 802.11gWiFi 4 (802.11n)WiFi 5 (802.11ac)WiFi 6 (802.11ax)WiFi 6E (802.11ax)WiFi 7 (802.11be)IPv4IPv6
Product Segment
BE18000 ultimate BE performance : 688+5764+11529 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 688 MbpsWiFi 7 (802.11be) (5GHz): up to 5764 MbpsWiFi 7 (802.11be) (6GHz): up to 11529 Mbps
Antenna
Internal antennas x 8
Transmit / Receive
2.4GHz 2x25GHz 4x46GHz 4x4
Processor
2.0GHz quad-core processor
Memory
RAM 2GB , Flash 256MB
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)Beamforming: standard-based and universal4096-QAM high data rate20/40/80/160/320 MHz bandwidth
Operating Frequency
2.4 GHz5 GHz6 GHz
Operating Mode
Wireless Router ModeAiMesh Node ModeAccess Point Mode
I/O Ports
10G WAN/LAN x 110G LAN x 11G WAN/LAN x 1USB 3.0 x1
Buttons
WPS button, Reset button, Power switch
LED Indicator
Power x 1
Power Supply
AC Input : 110V~240V(50~60Hz)DC Output : 12V with max. 3A current
Package Content
ZenWiFi BT10RJ45 cablePower adapterWarranty cardQuick start guide
Product Dimensions
159 x 72 x 186 mm
Remark
Content may vary in different regions and packages.
AiMesh
AiMesh• Primary AiMesh Router• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."Web & Apps FiltersTime SchedulingRewardParental Control - Safe BrowsingCustomized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."Support Guest Network
Security
AiProtectionVPNWPA/WPA2/WPA3-Personal, WPA/WPA2-EnterpriseWPSLet's EncryptDNS-over-TLSSecurity ScanFirewall
AiProtection
AiProtection Pro• Router Security Assessment• Malicious Site Blocking• Two-Way IPS• Infected Device Prevention and Blocking
VPN
Instant GuardVPN Client L2TPVPN Client Open VPNVPN Client PPTPVPN Client WireGuardVPN Server IPSecVPN Server Open VPNVPN Server PPTPVPN Server WireGuardVPN Fusion
Traffic Control
Adaptive QoS• Bandwidth Monitor• Bandwidth LimiterTraditional QoSTraffic MonitorTraffic Analyzer• Website History
WAN
Dual WAN3G / 4G LTE Dongle4G / 5G Auto Mobile TetheringPort ForwardingPort TriggeringDMZDDNS
LAN
DHCP ServerIGMP SnoopingIPTVLAN Link AggregationManually Assign IP AddressWake on LAN (WOL)
Wireless
MU-MIMOUTF-8 SSIDWiFi MAC Address FilterWireless SchedulerAirtime FairnessRADIUS ClientUniversal BeamformingExplicit Beamforming
USB application
4G / 5G Auto Mobile TetheringHDD HibernationSafely Remove DiskDownload MasterAiDiskMedia ServerTime MachineSamba ServerFTP ServerShared Folder PrivilegesAiCloud
Administration
Diagnosis ToolsFeedback SystemSystem LogNew Device Connect NotificationLogin CaptchaConnection DiagnosisAuto Firmware Update
Smart Home
Support Google Assistant
