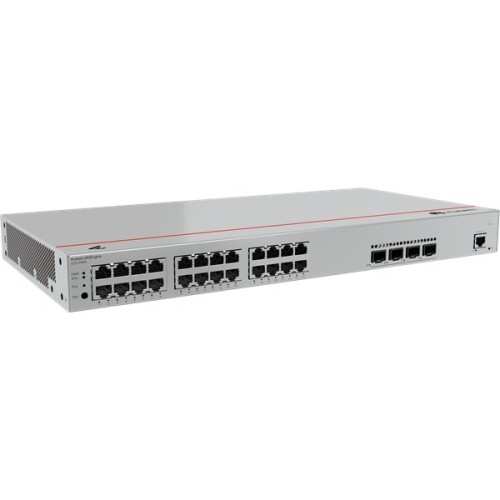

Huawei eKit Switch 24x1000Mbps (400W POE+) + 4x1GE (SFP) + 1konzol port, iStack, Layer2+ managed Rackes - S310-24P4S 98012201

First supported version
V600R022C10


Integrated fixed device
Y


Dimensions without packaging (H x W x D) [mm(in.)]
Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.4 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 227.0 mm (1.72 in. x 17.4 in. x 8.94 in.)


Dimensions with packaging (H x W x D) [mm(in.)]
90.0 mm x 550.0 mm x 360.0 mm (3.54 in. x 21.65 in. x 14.17 in.)


Chassis height [U]
1


Installation type
Rack mounting,Desk mounting,Wall mounting


Weight without packaging [kg(lb)]
2.92 (6.44)


Weight with packaging [kg(lb)]
3.79 (8.36)


Typical power consumption [W]
40.07


Typical heat dissipation [BTU/hour]
136.72


Maximum power consumption [W]
- Without PoE: 47.1 W - Full PoE load: 491.66 W (PoE: 400 W)


Maximum heat dissipation [BTU/hour]
- Without PoE: 160.71 - Full PoE load: 1677.59


Static power consumption [W]
30.82


100% power consumption [W]
40.54


MTBF [year]
60.18


MTTR [hour]
2


Availability
>0.99999


Noise at normal temperature (acoustic power) [dB(A)]
49.3


Noise at high temperature (acoustic power) [dB(A)]
63


Noise at normal temperature (acoustic pressure) [dB(A)]
37.3


Number of card slots
0


Number of power slots
0


Number of fans modules
2


Maximum number of physical ports on the entire device
28


Maximum number of 100GE ports
0


Maximum number of 40GE ports
0


Maximum number of 25GE ports
0


Maximum number of 10GE ports
0


Maximum number of 5GE ports
0


Maximum number of 2.5GE ports
0


Maximum number of GE ports
28


Maximum number of FE ports
24


Dedicated stack port
Not supported


Redundant power supply
Not supported


Long-term operating temperature [°C(°F)]
-5°C to +50°C (23°F to 122°F) at an altitude of 0-1800 m (0-5905.44 ft.)


Restriction on the operating temperature variation rate [°C(°F)]
When the altitude is 1800–5000 m (5906–16404 ft.), the highest operating temperature reduces by 1°C (1.8°F) every time the altitude increases by 220 m (722 ft.). Devices cannot start when the temperature is lower than 0°C (32°F).


Storage temperature [°C(°F)]
–40°C to +70°C (–40°F to +158°F)


Long-term operating relative humidity [RH]
5% RH to 95% RH (non-condensing)


Long-term operating altitude [m(ft.)]
0–5000 m (0–16404 ft.)


Storage altitude [m(ft.)]
0-5000 m (0-16404 ft.)


Power supply mode
AC built-in


Rated input voltage [V]
AC input: 100–240 V AC; 50/60 Hz


Input voltage range [V]
AC input: 90–290 V AC; 45–65 Hz


Maximum input current [A]
6 A


CPU
1.1 GHz, 2 cores


Memory
2 GB


Flash memory
1 GB in total. To view the available flash memory size, run the display version command.


Console port
RJ45


Eth Management port
Not supported


USB
Not supported


Hardware real-time power detection
Not supported


Dying gasp
Supported


RTC
Not supported


RPS input
Not supported


Complete device sleeping
Not supported


Service port surge protection [kV]
Common mode: ±7 kV


Power supply surge protection [kV]
Differential mode: ±6 kV; common mode: ±6 kV


Ingress protection level (dustproof/waterproof)
IP20


Types of fans
Built-in


Heat dissipation mode
Air cooling for heat dissipation, intelligent fan speed adjustment


Airflow direction
Air intake from left and front, air exhaustion from right


PoE
Supported


Maximum PoE power consumption [W]
400


PoE+ power interfaces
24


PoE++ power interfaces
-


Full load PoE power consumption 15.4W (802.3af)
24


Full load PoE power consumption 30W (802.3at)
13


Full load PoE++ power consumption 60W (802.3bt)
-


Full load PoE++ power consumption 90W (802.3bt)
-


Certification
EMC certification Safety certification Manufacturing certification
